pEGFP-rNFM
(Plasmid #32907)

• Purpose: Mammalian expression construct driving the expression of a fluorescent fusion protein consisting of EGFP linked to the N-terminus of rat neurofilament protein M
• Depositing Lab: Anthony Brown
• Depositing Organization: Ohio State University
  Located in United States of America
• Publication: Wang et al Nat Cell Biol. 2000 Mar;2(3):137-41.
• Citations: 1 Article

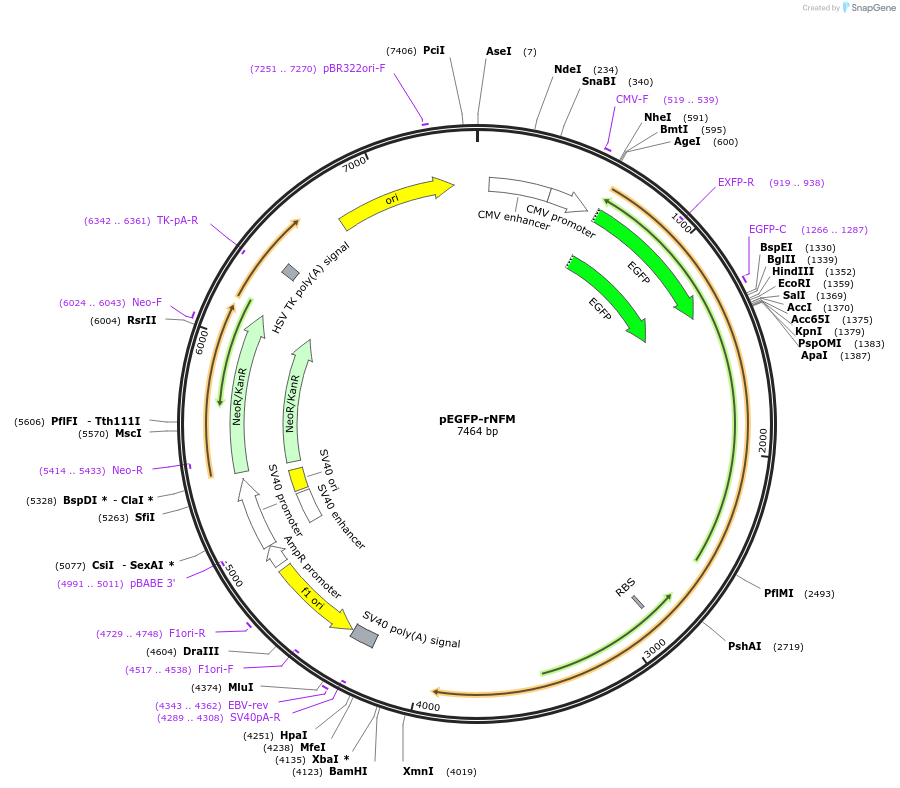

Backbone

• Vector backbone: pEGFP-C1
• Backbone manufacturer: Clontech
• Backbone size w/o insert (bp): 4134
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: EGFP-rat NFM fusion
• Alt name: NFM
• Alt name: neurofilament protein M
• Species: R. norvegicus (rat)
• Insert Size (bp): 3330
• Entrez Gene: Nefm (a.k.a. Nef3, Nfm)
• Promoter: CMV
• Tag / Fusion Protein:
  • EGFP (N terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: ApaI (not destroyed)
• 3′ cloning site: ApaI (destroyed during cloning)
• 5′ sequencing primer: multiple primers
• 3′ sequencing primer: multiple primers

Resource Information

• A portion of this plasmid was derived from a plasmid made by: Rat NFM cDNA originally cloned by Ron Liem, Department of Pathology, Columbia University College of Physicians and Surgeons, New York

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

Plasmid first described in Wang et al. (2000) "Rapid movement of axonal neurofilaments interrupted by prolonged pauses" Nature Cell Biology 2:137-141.

DNA (Catalog # 32907-D50)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 50 μg
• Concentration: 1 μg/μL
• Pricing: $495 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

DNA (Catalog # 32907-D100)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 100 μg
• Concentration: 1 μg/μL
• Pricing: $585 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
