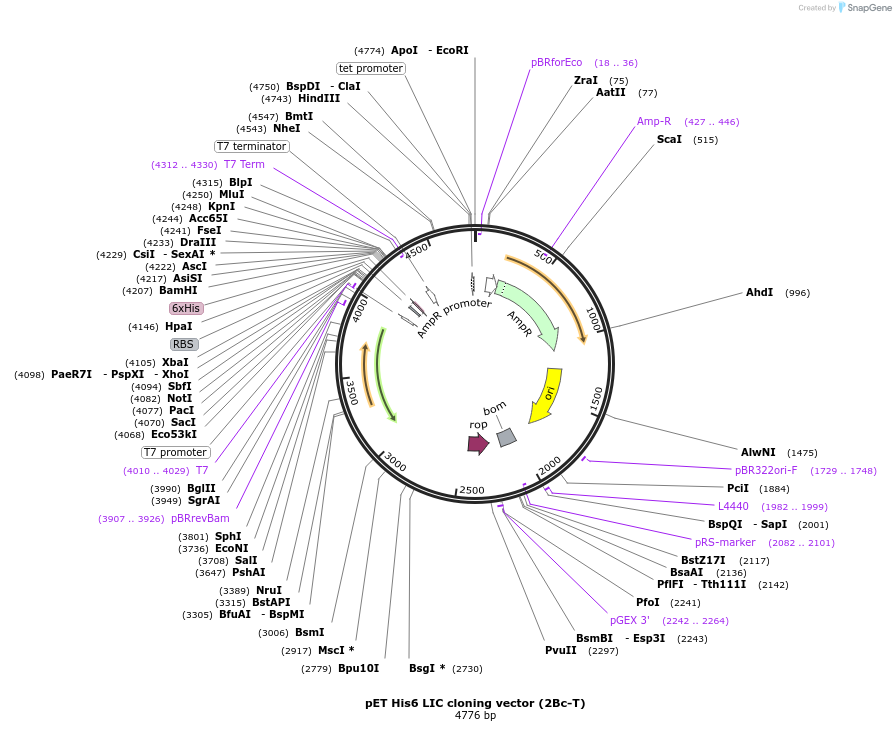

pET His6 LIC cloning vector (2Bc-T)
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||37236||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
This material is available to academics and nonprofits only.
- Backbone size (bp) 4776
Vector typeBacterial Expression
- Promoter T7
/ Fusion Protein
- His6 (C terminal on backbone)
Growth in Bacteria
Growth Strain(s)XL1 Blue
Copy numberLow Copy
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer T7 promoter
- 3′ sequencing primer T7 terminator (Common Sequencing Primers)
Terms and Licenses
- Not Available to Industry
- Zeocin® is an InvivoGen trademark.
This plasmid is an empty vector. Your gene can be inserted with a LIC cloning protocol. All 2-series vectors work as single-expression vectors, as well as transfer vectors for our polycistronic system. For more details, see the MacroLab vector cloning manual.
The LIC cloning site is flanked by 5 pairs of restriction sites, so that your gene can easily be subcloned into our polycistronic destination vectors (2D, 2E, or 2Z).
2Bc-T has a TEV-cleavable C-terminal His6 tag to ease purification.
To clone into this vector, add LIC v3 tags to the 5' end of your PCR primers.
Forward - 5'TTTAAGAAGGAGATATAGTTC(ATG)3'
Reverse - 5'GGATTGGAAGTAGAGGTTCTC3'
Linearize the plasmid with HpaI and gel purify.
When digesting the DNA with T4 polymerase, use dGTP for insert and dCTP for vector.
More information on this vector can be found through http://qb3.berkeley.edu/qb3/macrolab/
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:pET His6 LIC cloning vector (2Bc-T) was a gift from Scott Gradia (Addgene plasmid # 37236 ; http://n2t.net/addgene:37236 ; RRID:Addgene_37236)
