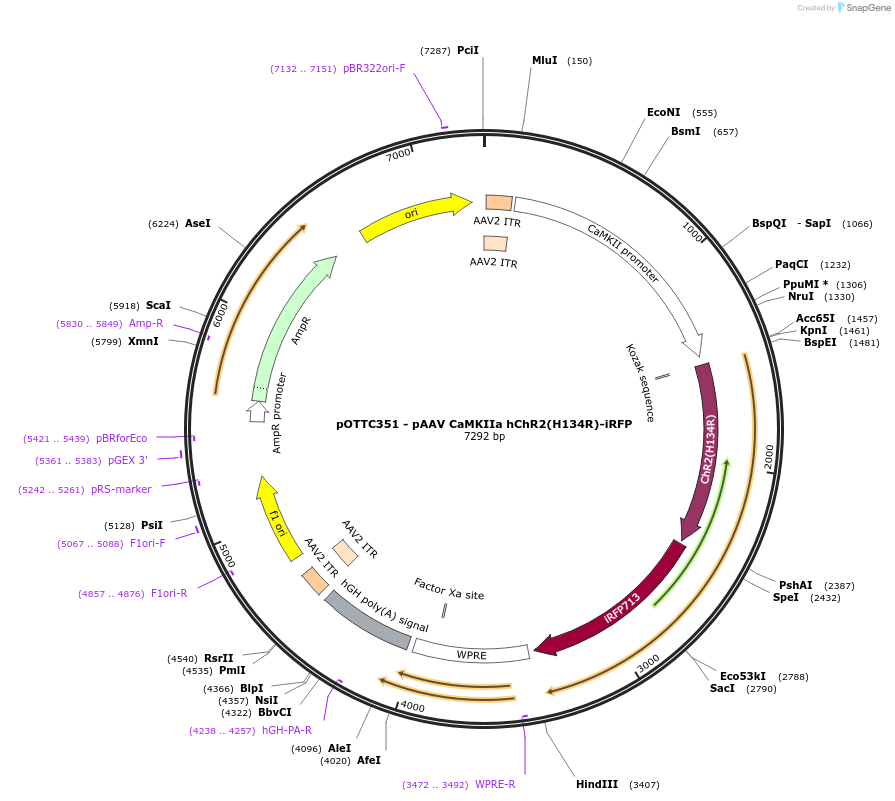

pOTTC351 - pAAV CaMKIIa hChR2(H134R)-iRFP
(Plasmid #47905)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 47905 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pAAV-CaMKIIa-hChR2(H134R)-EYFP
  • Backbone manufacturer
    Karl Deisseroth
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    Stbl3
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    hChR2(H134R)
  • Alt name
    Channel Rhodopsin 2
  • Mutation
    H134R
  • GenBank ID
    EF474017
  • Promoter CaMKIIa
  • Tag / Fusion Protein
    • iRFP (C terminal on insert)

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer CaMKIIa prom F1221 (5'CGTCAGTCAAGCCGGTTCTC)
  • 3′ sequencing primer WPRE_R1 (5'ATGAAAGCCATACGGGAAGC)
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    the ORF for iRFP was obtained from Addgene (Plasmid 31857). the backbone was obtained from Karl Deisseroth, but is also available from Addgene (Plasmid 26969).
  • Article Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pOTTC351 - pAAV CaMKIIa hChR2(H134R)-iRFP was a gift from Brandon Harvey (Addgene plasmid # 47905 ; http://n2t.net/addgene:47905 ; RRID:Addgene_47905)
  • For your References section:

    Near-infrared fluorescent protein iRFP713 as a reporter protein for optogenetic vectors, a transgenic Cre-reporter rat, and other neuronal studies. Richie CT, Whitaker LR, Whitaker KW, Necarsulmer J, Baldwin HA, Zhang Y, Fortuno L, Hinkle JJ, Koivula P, Henderson MJ, Sun W, Wang K, Smith JC, Pickel J, Ji N, Hope BT, Harvey BK. J Neurosci Methods. 2017 Jun 1;284:1-14. doi: 10.1016/j.jneumeth.2017.03.020. Epub 2017 Apr 2. 10.1016/j.jneumeth.2017.03.020 PubMed 28380331
