PurposeExpression of a GFP-dependent transcription factor component in mammalian cells
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||50791||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
This material is available to academics and nonprofits only.

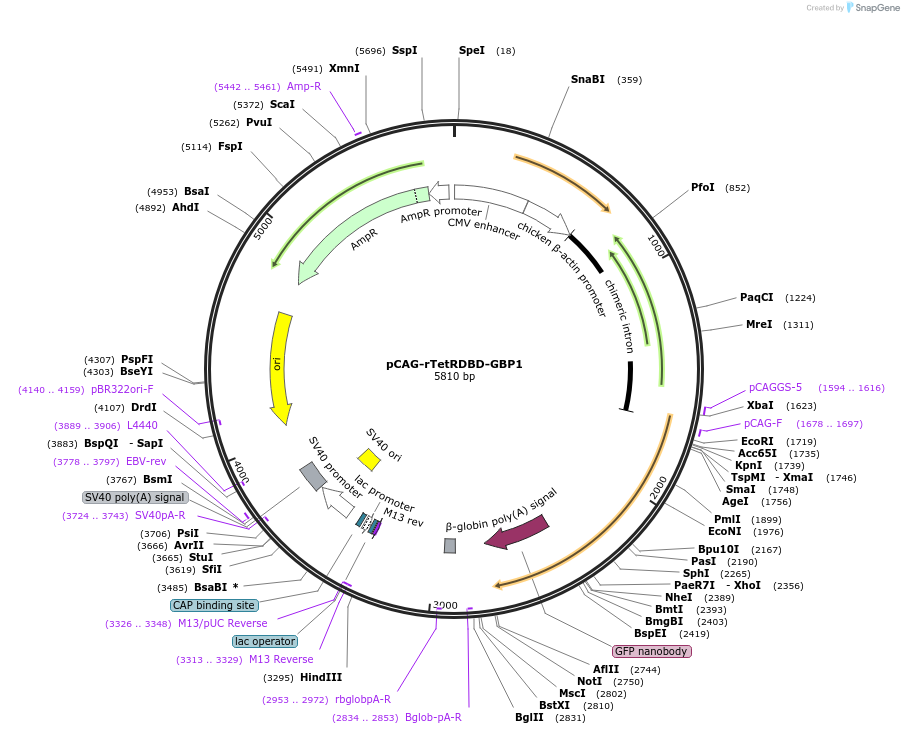

- Backbone size w/o insert (bp) 4823
- Total vector size (bp) 5810
Vector typeMammalian Expression
Growth in Bacteria
Bacterial Resistance(s)Ampicillin, 100 μg/mL
Copy numberHigh Copy
Gene/Insert namerTetR DNA binding domain-GBP1 fusion protein
Insert Size (bp)987
- Promoter CAG
- Cloning method Restriction Enzyme
- 5′ cloning site AgeI (not destroyed)
- 3′ cloning site NotI (not destroyed)
- 5′ sequencing primer GGACTTCCTTTGTCCCAAATCTG
- 3′ sequencing primer TAGCCAGAAGTCAGATGCTC (Common Sequencing Primers)
A portion of this plasmid was derived from a plasmid made bypCAG-GFP, Cepko lab
Article Citing this Plasmid
Terms and Licenses
- Not Available to Industry
- Zeocin® is an InvivoGen trademark.
Tang J.C. et al. (2013). A nanobody-based system using fluorescent proteins as scaffolds for cell-specific gene manipulation. Cell. 2013 Aug 15;154(4):928-39.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:pCAG-rTetRDBD-GBP1 was a gift from Connie Cepko (Addgene plasmid # 50791 ; http://n2t.net/addgene:50791 ; RRID:Addgene_50791)
For your References section:A nanobody-based system using fluorescent proteins as scaffolds for cell-specific gene manipulation. Tang JC, Szikra T, Kozorovitskiy Y, Teixiera M, Sabatini BL, Roska B, Cepko CL. Cell. 2013 Aug 15;154(4):928-39. doi: 10.1016/j.cell.2013.07.021. 10.1016/j.cell.2013.07.021 PubMed 23953120
