PurposeExpresses infrared fluorescent tobacco etch virus protease sensor (iTEV)
-
Depositing Lab
-
Depositing OrganizationUniversity of California, San Francisco (UCSF)
Located in the United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 64277 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 64277-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 64277-D100 | 100 μg of DNA in Tris buffer | $585 | ||

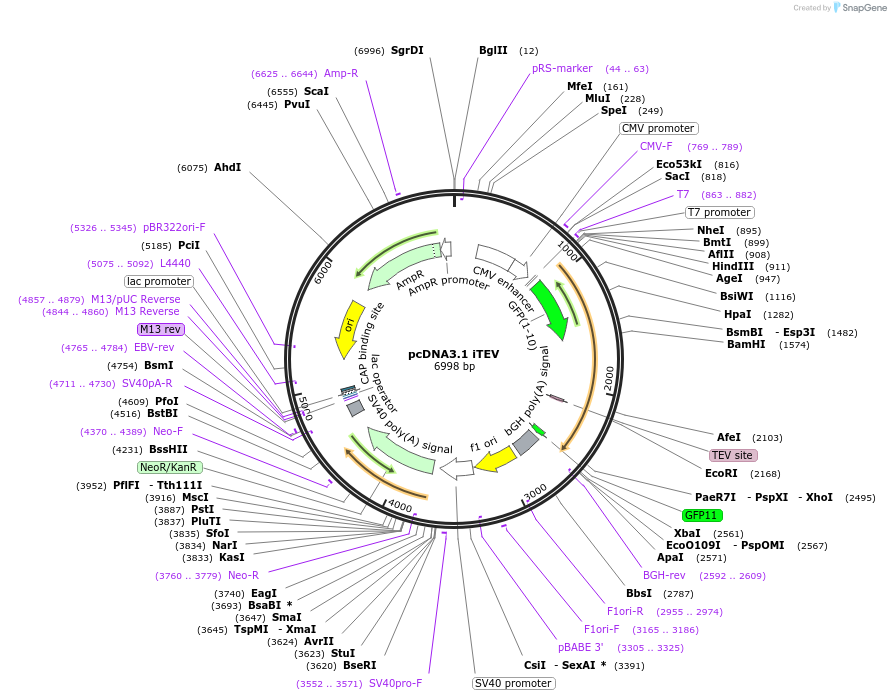

Backbone
-
Vector backbonepcDNA3.1
- Backbone size w/o insert (bp) 5360
- Total vector size (bp) 7000
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Top10
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert nameInfrared fluorescent tobacco etch virus protease sensor (iTEV)
-
Alt nameiTEV
-
SpeciesSynthetic
-
Insert Size (bp)1635
- Promoter CMV
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site HindIII (not destroyed)
- 3′ cloning site XbaI (not destroyed)
- 5′ sequencing primer TAATACGACTCACTATAGGG
- 3′ sequencing primer TAGAAGGCACAGTCGAGG
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 64277-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 64277-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA3.1 iTEV was a gift from Xiaokun Shu (Addgene plasmid # 64277 ; http://n2t.net/addgene:64277 ; RRID:Addgene_64277) -
For your References section:
Rationally designed fluorogenic protease reporter visualizes spatiotemporal dynamics of apoptosis in vivo. To TL, Piggott BJ, Makhijani K, Yu D, Jan YN, Shu X. Proc Natl Acad Sci U S A. 2015 Mar 17;112(11):3338-43. doi: 10.1073/pnas.1502857112. Epub 2015 Mar 2. 10.1073/pnas.1502857112 PubMed 25733847
