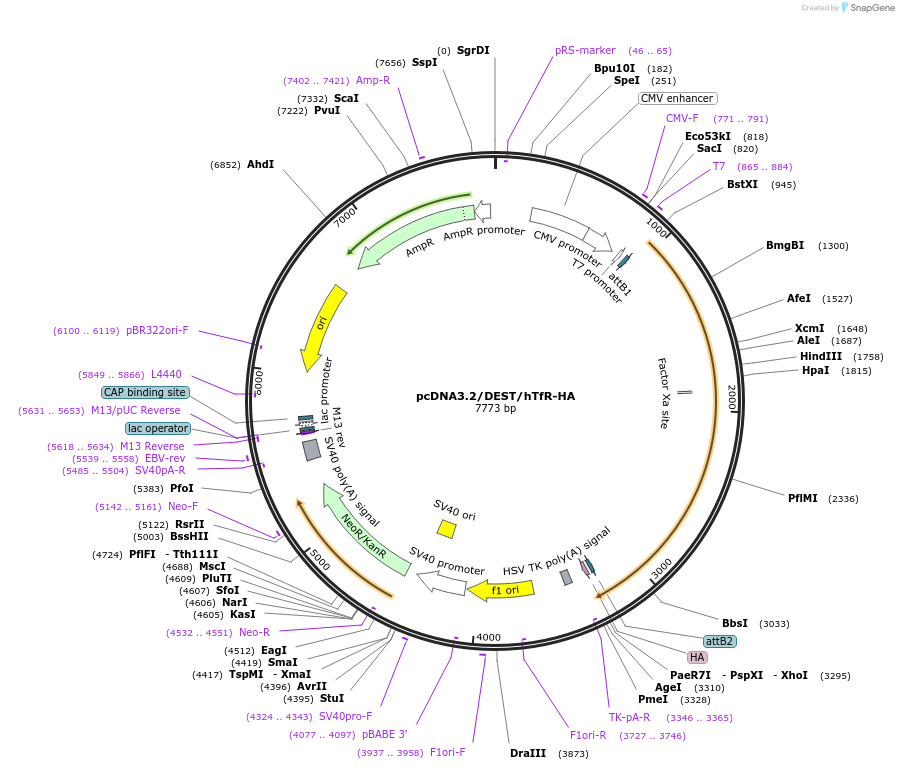

pcDNA3.2/DEST/hTfR-HA
(Plasmid #69610)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 69610 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pcDNA3.2-HA/Dest (converted from pcDNA3.2-V5/Dest)
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 7699
  • Total vector size (bp) 7771
  • Modifications to backbone
    pcDNA3.2-V5/Dest was converted to pcDNA3.2-HA/Dest by first introducing unique NotI and XhoI sites by sire-directed mutagenesis, followed by ligation of annealed HA-stop peptide.
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    human transferrin receptor
  • Alt name
    TfR
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2283
  • GenBank ID
    BC001188
  • Entrez Gene
    TFRC (a.k.a. CD71, IMD46, T9, TFR, TFR1, TR, TRFR, p90)
  • Promoter CMV
  • Tag / Fusion Protein
    • HA (C terminal on backbone)

Cloning Information

  • Cloning method Gateway Cloning
  • 5′ sequencing primer T7 forward primer
  • 3′ sequencing primer TfR internal primer (5' CGCTGCCAGCTTTACTGGAG 3')
  • (Common Sequencing Primers)

Resource Information

  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry
  • Articles Citing this Plasmid
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3.2/DEST/hTfR-HA was a gift from Robin Shaw (Addgene plasmid # 69610 ; http://n2t.net/addgene:69610 ; RRID:Addgene_69610)
  • For your References section:

    Actin cytoskeleton rest stops regulate anterograde traffic of connexin 43 vesicles to the plasma membrane. Smyth JW, Vogan JM, Buch PJ, Zhang SS, Fong TS, Hong TT, Shaw RM. Circ Res. 2012 Mar 30;110(7):978-89. Epub 2012 Feb 9. 10.1161/CIRCRESAHA.111.257964 PubMed 22328533
