pCH104
(Plasmid
#72298)
-
PurposeReceptors for two-strain system
-
Depositing Lab
-
Depositing OrganizationRice University
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 72298 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 72298-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 72298-D100 | 100 μg of DNA in Tris buffer | $585 | ||

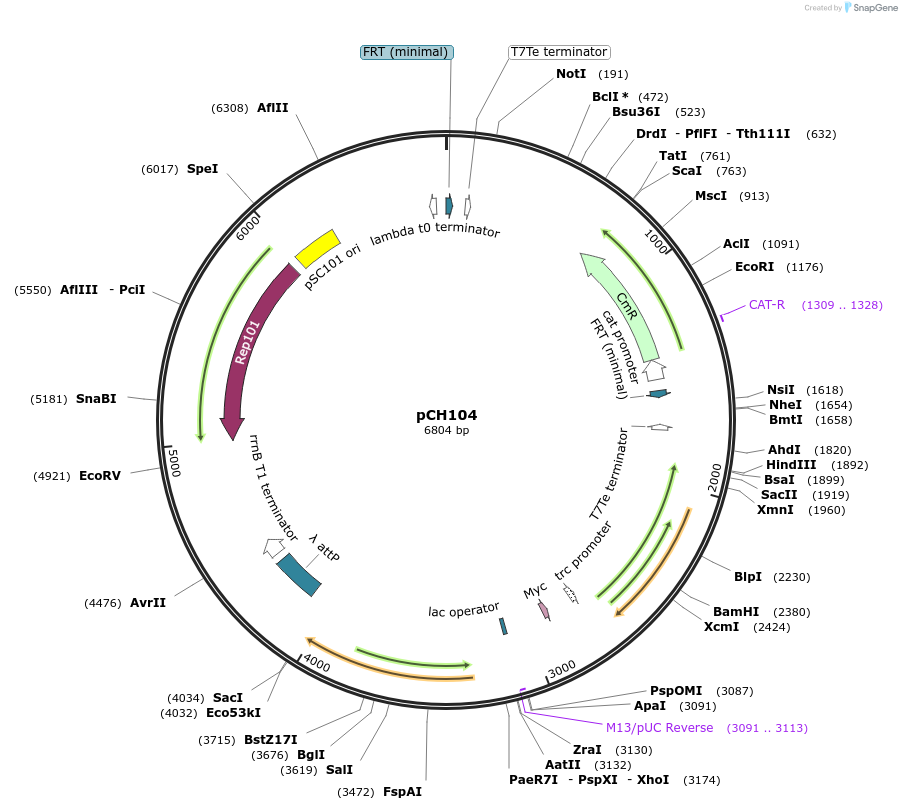

Backbone
-
Vector backbonepSC101
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert 1
-
Gene/Insert nameRhlR
-
Insert Size (bp)966
-
Entrez GenerhlR (a.k.a. PA3477)
Gene/Insert 2
-
Gene/Insert nameCinR
-
Insert Size (bp)726
-
GenBank IDAF210630.1
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Lower expression level for CinR. This plasmid provide receptor for pRhl and pCin tests.
DNA (Catalog # 72298-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 72298-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCH104 was a gift from Matthew Bennett (Addgene plasmid # 72298 ; http://n2t.net/addgene:72298 ; RRID:Addgene_72298) -
For your References section:
SYNTHETIC BIOLOGY. Emergent genetic oscillations in a synthetic microbial consortium. Chen Y, Kim JK, Hirning AJ, Josic K, Bennett MR. Science. 2015 Aug 28;349(6251):986-9. doi: 10.1126/science.aaa3794. 10.1126/science.aaa3794 PubMed 26315440
