pNCS-mClover3
(Plasmid #74236)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 74236 Standard format: Plasmid sent in bacteria as agar stab 1 $75
Cloning Grade DNA 74236-DNA.cg 2 µg of cloning grade DNA in Tris buffer 1 $95

This material is available to academics and nonprofits only.

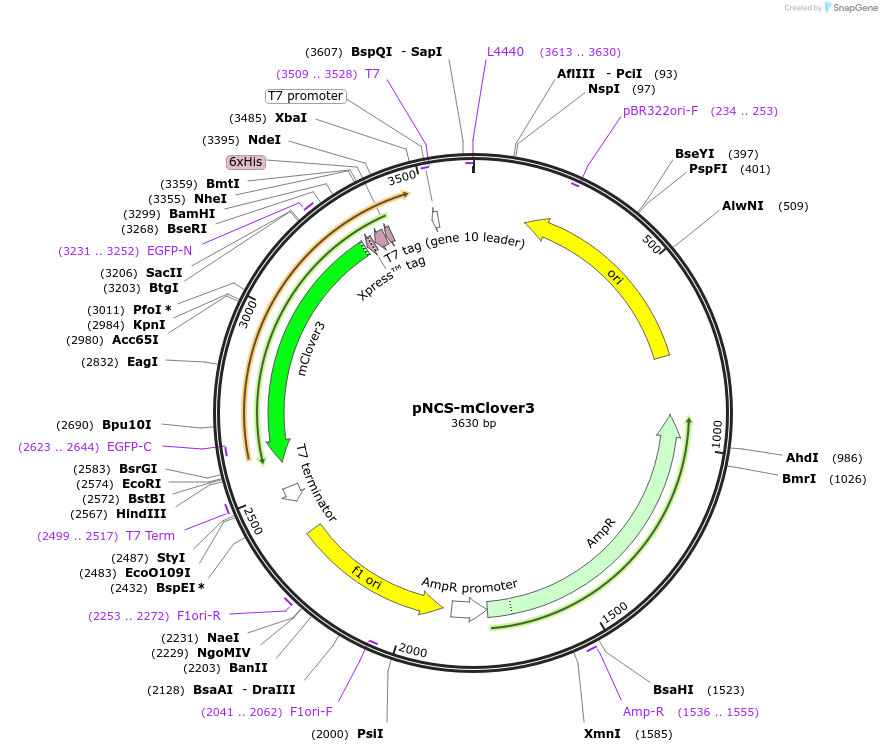

Backbone

  • Vector backbone
    pNCS
  • Backbone size w/o insert (bp) 2916
  • Total vector size (bp) 3633
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    mClover3
  • Insert Size (bp)
    717
  • Promoter T7
  • Tag / Fusion Protein
    • 6xHis (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (unknown if destroyed)
  • 3′ cloning site EcoRI (unknown if destroyed)
  • 5′ sequencing primer T7 Xpress Fwd
  • 3′ sequencing primer T7 term
  • (Common Sequencing Primers)

Resource Information

  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry
  • Article Citing this Plasmid

Depositor Comments

The specific substitutions used in the development of mClover3 relative to its parent Clover are N149Y, G160C, and A206K.

Information for Cloning Grade DNA (Catalog # 74236-DNA.cg) ( Back to top )

Purpose

Cloning grade DNA is suitable for use in PCR, cloning reactions, or transformation into E. coli. The purity and amount is not suitable for direct transfections.

Delivery

  • Amount 2 µg
  • Guaranteed Concentration 100 ng/µl +/- 5 ng/µl
  • Pricing $95 USD
  • Storage DNA can be stored at 4℃ (short term) or -20℃ (long term).

Resource Information

  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry

Quality Control

Addgene has verified this plasmid using Next Generation Sequencing. Results are available here

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pNCS-mClover3 was a gift from Michael Lin (Addgene plasmid # 74236 ; http://n2t.net/addgene:74236 ; RRID:Addgene_74236)
  • For your References section:

    Improving brightness and photostability of green and red fluorescent proteins for live cell imaging and FRET reporting. Bajar BT, Wang ES, Lam AJ, Kim BB, Jacobs CL, Howe ES, Davidson MW, Lin MZ, Chu J. Sci Rep. 2016 Feb 16;6:20889. doi: 10.1038/srep20889. 10.1038/srep20889 PubMed 26879144
