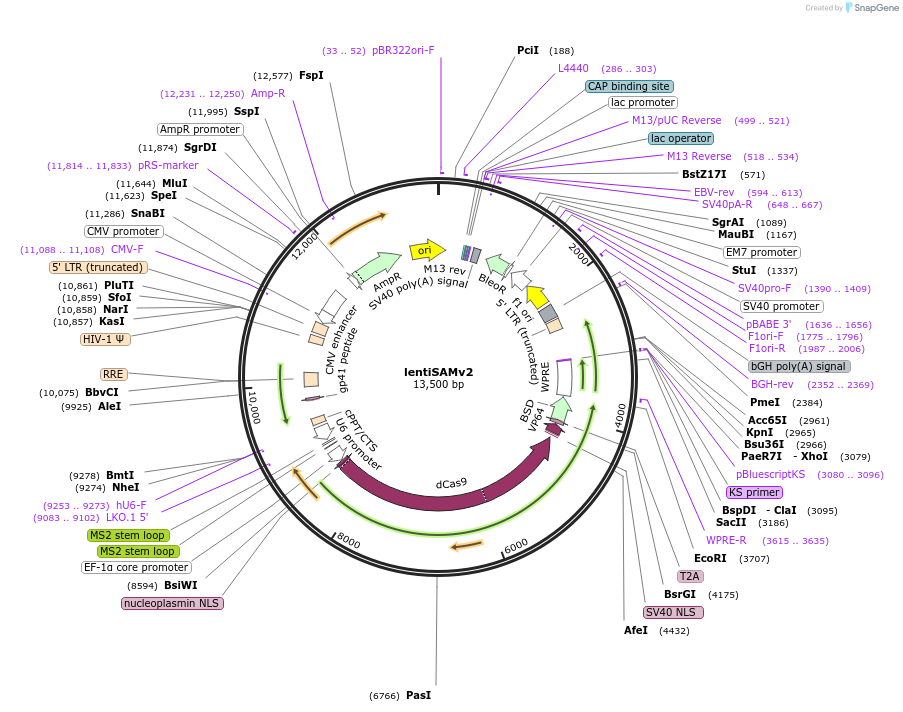

Purpose(Empty Backbone) lenti sgRNA cloning backbone with MS2 loops at tetraloop and stemloop 2, dCas9-VP64, and blast resistance marker. Contains BsmBI sites for insertion of spacer sequences.
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||75112||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
|Cloning Grade DNA||75112-DNA.cg||2 µg of cloning grade DNA in Tris buffer||1||$95|
This material is available to academics and nonprofits only.
- Backbone size (bp) 13500
Vector typeMammalian Expression, Lentiviral, CRISPR
- Promoter U6 and EF1A
Growth in Bacteria
Copy numberHigh Copy
- Cloning method Restriction Enzyme
Alternate plasmid name: lenti dCas9-VP64-blast and sgRNA(MS2) backbone
Information for Cloning Grade DNA (Catalog # 75112-DNA.cg) ( Back to top )
Cloning grade DNA is suitable for use in PCR, cloning reactions, or transformation into E. coli. The purity and amount is not suitable for direct transfections.
- Amount 2 µg
- Guaranteed Concentration 100 ng/µl +/- 5 ng/µl
- Pricing $95 USD
- Storage DNA can be stored at 4℃ (short term) or -20℃ (long term).
Terms and Licenses
- Not Available to Industry
Addgene has verified this plasmid using Next Generation Sequencing. Results are available here
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:lentiSAMv2 was a gift from Feng Zhang (Addgene plasmid # 75112 ; http://n2t.net/addgene:75112 ; RRID:Addgene_75112)
For your References section:Genome-scale CRISPR-Cas9 knockout and transcriptional activation screening. Joung J, Konermann S, Gootenberg JS, Abudayyeh OO, Platt RJ, Brigham MD, Sanjana NE, Zhang F. Nat Protoc. 2017 Apr;12(4):828-863. doi: 10.1038/nprot.2017.016. Epub 2017 Mar 23. 10.1038/nprot.2017.016 PubMed 28333914
