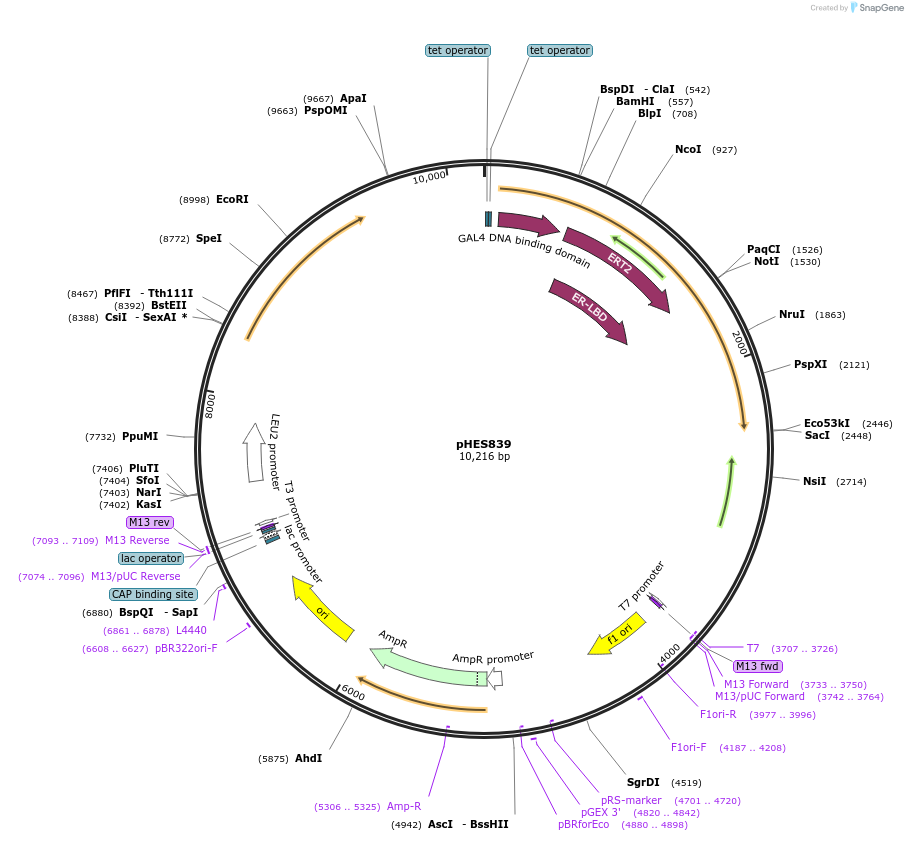

pHES839
(Plasmid #87941)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 87941 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pNH605
  • Total vector size (bp) 7366
  • Vector type
    Yeast Expression, Synthetic Biology
  • Selectable markers
    LEU2

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    GAL4 DBD - hER LBD - MSN2 AD
  • Alt name
    GEM
  • Species
    H. sapiens (human), S. cerevisiae (budding yeast), Synthetic
  • Insert Size (bp)
    2369
  • Entrez Gene
    ESR1 (a.k.a. ER, ESR, ESRA, ESTRR, Era, NR3A1)
  • Promoter ADH1 (crippled)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site PspOMI (not destroyed)
  • 3′ cloning site SacI (not destroyed)
  • 5′ sequencing primer TATTAGCTTGTGCATTCGCAT
  • 3′ sequencing primer CGCACTCACGTAAACACTTAATC
  • (Common Sequencing Primers)

Resource Information

  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pHES839 was a gift from Hana El-Samad (Addgene plasmid # 87941 ; http://n2t.net/addgene:87941 ; RRID:Addgene_87941)
  • For your References section:

    Robust Synthetic Circuits for Two-Dimensional Control of Gene Expression in Yeast. Aranda-Diaz A, Mace K, Zuleta I, Harrigan P, El-Samad H. ACS Synth Biol. 2016 Dec 27. doi: 10.1021/acssynbio.6b00251. 10.1021/acssynbio.6b00251 PubMed 27930885
