PurposeHomologous recombination donor for pDRR. Expresses mCherry after repait by HR.
-
Depositing Lab
-
Depositing OrganizationSalk Institute for Biological Studies
Located in United States of America -
Citations
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 98896 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 98896-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 98896-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepCAGGS
- Backbone size w/o insert (bp) 3050
- Total vector size (bp) 6435
-
Modifications to backboneDeletion of CBA promoter
-
Vector typeMammalian Expression, Synthetic Biology
-
Selectable markersBFP
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNeomycin-T2A-mCherry-GFP
-
SpeciesSynthetic
-
Insert Size (bp)2290
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 98896-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 98896-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCAGGS DRR mCherry Donor EF1a BFP was a gift from Jan Karlseder (Addgene plasmid # 98896 ; http://n2t.net/addgene:98896 ; RRID:Addgene_98896) -
For your References section:
Regulation of DNA repair pathway choice in S and G2 phases by the NHEJ inhibitor CYREN. Arnoult N, Correia A, Ma J, Merlo A, Garcia-Gomez S, Maric M, Tognetti M, Benner CW, Boulton SJ, Saghatelian A, Karlseder J. Nature. 2017 Sep 20;549(7673):548-552. doi: 10.1038/nature24023. 10.1038/nature24023 PubMed 28959974

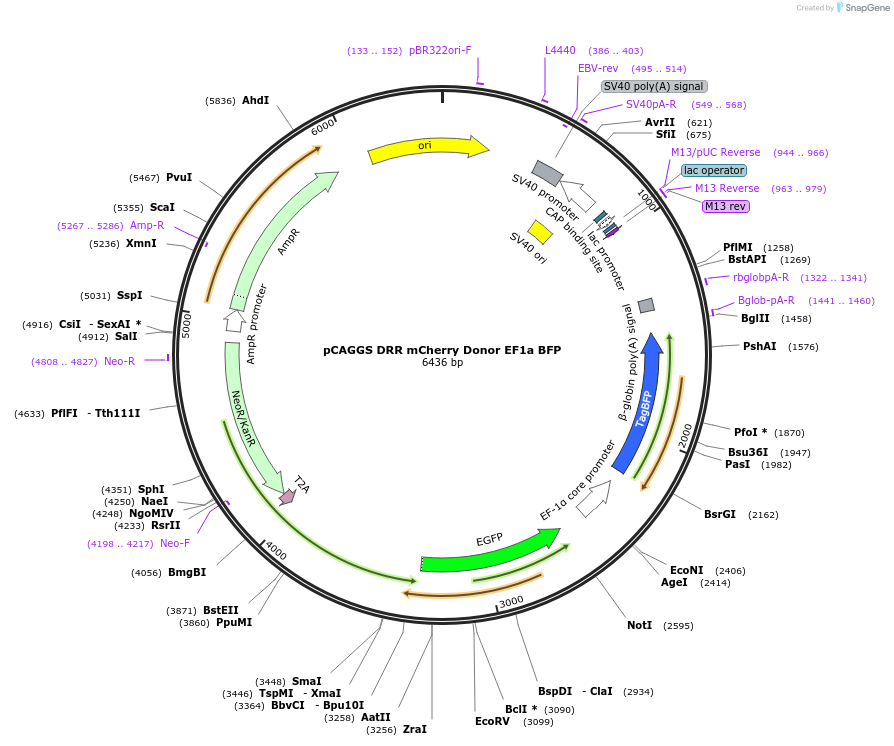

Map uploaded by the depositor.
