pUDP123
(Plasmid
#107269)
-
PurposepUDP123 expressing a polycistronic g-RNA array for Cas9 editing targeting the genes OpADE2 and OpNIAD and Spcas9D147Y P411T in O. parapolymorpha (HH-gRNAOpADE2-HDV-linker-HH-gRNAOpNIAD-HDV)
-
Depositing Lab
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 107269 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepUDP002 #103872
-
Backbone manufacturerJuergens H et al. Genome editing in Kluyveromyces and Ogataea yeasts using a broad-host-range Cas9/gRNA expression plasmid
- Backbone size w/o insert (bp) 10046
- Total vector size (bp) 10458
-
Modifications to backbonepolycistronic HH-gRNA-HDV-HH-gRNA-HDV array targetting OpADE2 and NIAD in O. parapolymorpha
-
Vector typeYeast Expression
-
Selectable markersHygromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namepolycistronic HH-gRNA-HDV-HH-gRNA-HDV array targetting OpADE2 and NIAD in O. parapolymorpha
-
gRNA/shRNA sequenceTTCCAGCTGATGAGTCCGTGAGGACGAAACGAGTAAGCTCGTCCTGGAATTGATCTGCTTGGCGTTTTAGAGCTAGAAATAGCAAGTTAAAATAAGGCTAGTCCGTTATCAACTTGAAAAAGTGGCACCGAGTCGGTGCTTTTGGCCGGCATGGTCCCAGCCTCCTCGCTGGCGCCGGCTGGGCAACATGCTTCGGCATGGCGAATGGGACCATCGTTGGCTGTGCTCTGATGAGTCCGTGAGGACGAAACGAGTAAGCTCGTCagcacagaccatagtaactgGTTTTAGAGCTAGAAATAGCAAGTTAAAATAAGGCTAGTCCGTTATCAACTTGAAAAAGTGGCACCGAGTCGGTGCTTTTGGCCGGCATGGTCCCAGCCTCCTCGCTGGCGCCGGCTGGGCAACATGCTTCGGCATGGCGAATGGGACACAG
-
SpeciesOgataea parapolymorpha
-
GenBank IDFJ493241.1 XM_014082012.1
- Promoter ScTDH3
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BsaI (destroyed during cloning)
- 3′ cloning site BsaI (destroyed during cloning)
- 5′ sequencing primer GTCCATAGTCAACAAGAGCCC
- 3′ sequencing primer CAATCCTTTGCCGTAGTTTCAACG (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pUDP123 was a gift from Jean-Marc Daran (Addgene plasmid # 107269 ; http://n2t.net/addgene:107269 ; RRID:Addgene_107269) -
For your References section:
Genome editing in Kluyveromyces and Ogataea yeasts using a broad-host-range Cas9/gRNA co-expression plasmid. Juergens H, Varela JA, Gorter de Vries AR, Perli T, Gast VJM, Gyurchev NY, Rajkumar AS, Mans R, Pronk JT, Morrissey JP, Daran JG. FEMS Yeast Res. 2018 May 1;18(3). pii: 4847887. doi: 10.1093/femsyr/foy012. 10.1093/femsyr/foy012 PubMed 29438517

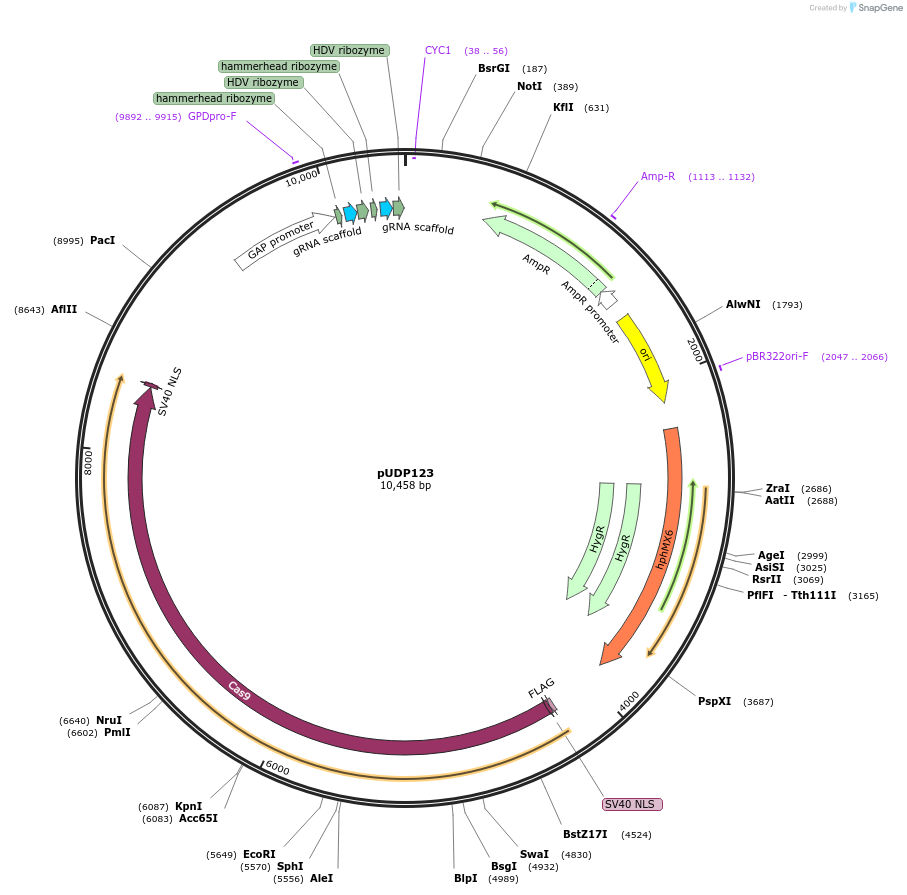

Map uploaded by the depositor.
