pPB-R1R2_EF1adCas9VP64_T2A_MS2p65HSF1-IRESbsdpA
(Plasmid
#112924)
-
PurposepiggyBac transposon vector carrying human EF1a promoter-driven dCas9VP64-T2A-MS2p65HSF1 with Blasticidin resistant marker
-
Depositing Lab
-
Depositing OrganizationWellcome Sanger Institute
Located in United Kingdom of Great Britain and Northern Ireland -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 112924 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 112924-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 112924-D100 | 100 μg of DNA in Tris buffer | $585 | ||

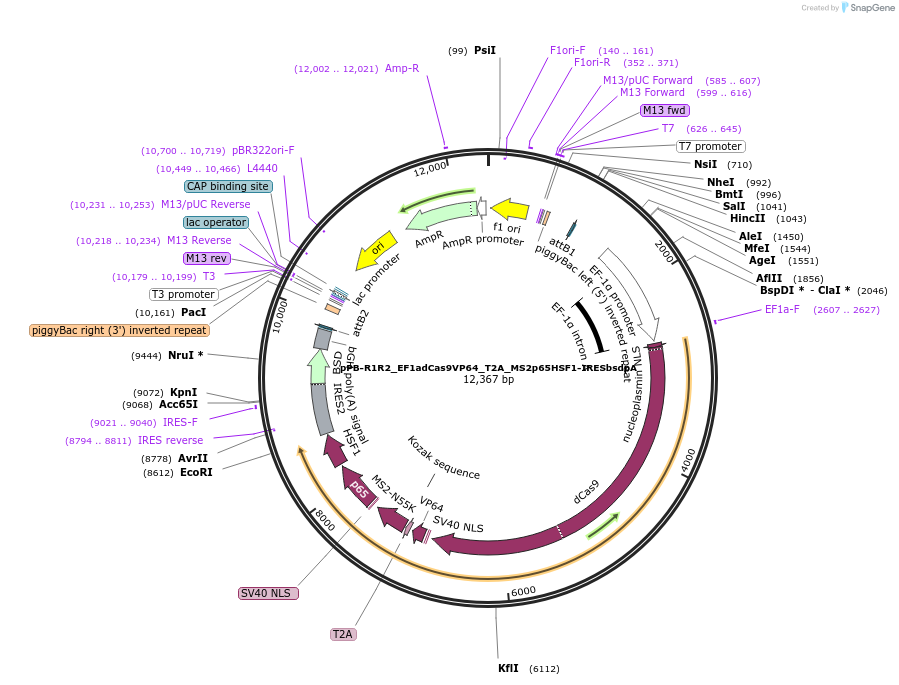

Backbone
-
Vector backbonepPB_R1R2-EM7neoPheS
- Backbone size w/o insert (bp) 3470
- Total vector size (bp) 12367
-
Vector typeMammalian Expression ; piggyBac transposon vector
-
Selectable markersBlasticidin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameEF1a promoter, dCas9VP94, MS2p65HSF1, IRESneo
-
SpeciesSynthetic
-
Insert Size (bp)8796
Cloning Information
- Cloning method Gateway Cloning
- 5′ sequencing primer TGTAAAACGACGGCCAG
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 112924-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 112924-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pPB-R1R2_EF1adCas9VP64_T2A_MS2p65HSF1-IRESbsdpA was a gift from Kosuke Yusa (Addgene plasmid # 112924 ; http://n2t.net/addgene:112924 ; RRID:Addgene_112924) -
For your References section:
Pooled extracellular receptor-ligand interaction screening using CRISPR activation. Chong ZS, Ohnishi S, Yusa K, Wright GJ. Genome Biol. 2018 Nov 26;19(1):205. doi: 10.1186/s13059-018-1581-3. 10.1186/s13059-018-1581-3 PubMed 30477585
