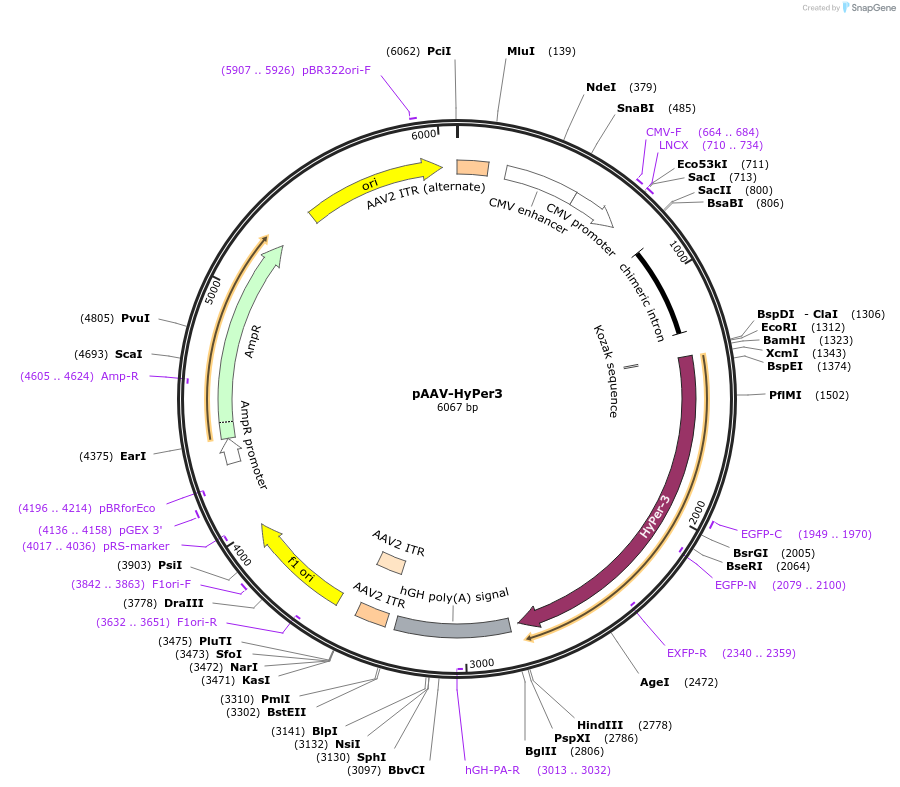

PurposeAAV expression vector with CMV promoter driving expression of the hydrogen peroxide-sensitive fluorescent biosensor HyPer3.
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||119183||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
This material is available to academics and nonprofits only.
- Backbone size w/o insert (bp) 4600
- Total vector size (bp) 6000
Vector typeMammalian Expression, AAV
Growth in Bacteria
Growth Strain(s)NEB Stable
Copy numberHigh Copy
Insert Size (bp)1437
- Promoter CMV
/ Fusion Protein
- Cloning method Restriction Enzyme
- 5′ cloning site XbaI (destroyed during cloning)
- 3′ cloning site HindIII (not destroyed)
- 5′ sequencing primer TTATCTTCCTCCCACAGCTCC
- 3′ sequencing primer TGGAGTGGCAACTTCCAGG (Common Sequencing Primers)
A portion of this plasmid was derived from a plasmid made byHyPer3 was originally created by Vsevolod Belousov's laboratory.
Terms and Licenses
- Not Available to Industry
Can be used for in vivo expression of the hydrogen peroxide-sensitive fluorescent protein HyPer3. It was used for this purpose in Steinhorn et al. Free Radic Biol Med. 2017 Dec;113:16-25. doi: 10.1016/j.freeradbiomed.2017.09.006.
In the associated publication (Steinhorn et al. Nat Commun. 2018 Oct 2;9(1):4044. doi: 10.1038/s41467-018-06533-2), it was used as a control for a virus driving expression of a fusion between HyPer and D-amino acid oxidase.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:pAAV-HyPer3 was a gift from Thomas Michel (Addgene plasmid # 119183 ; http://n2t.net/addgene:119183 ; RRID:Addgene_119183)
For your References section:Chemogenetic generation of hydrogen peroxide in the heart induces severe cardiac dysfunction. Steinhorn B, Sorrentino A, Badole S, Bogdanova Y, Belousov V, Michel T. Nat Commun. 2018 Oct 2;9(1):4044. doi: 10.1038/s41467-018-06533-2. 10.1038/s41467-018-06533-2 PubMed 30279532
