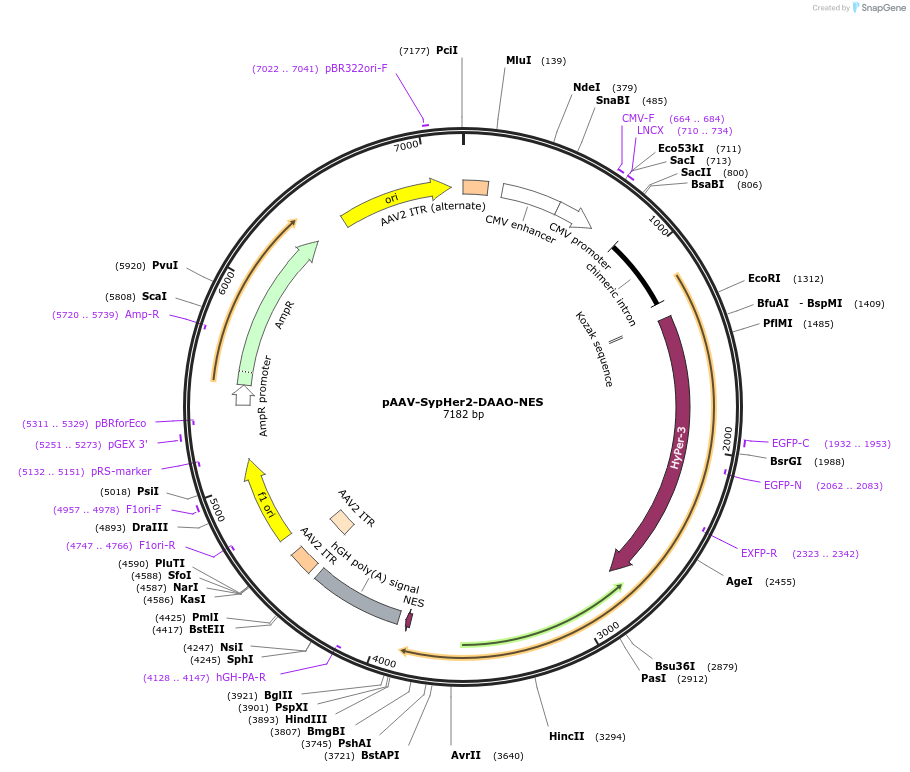

pAAV-SypHer2-DAAO-NES
(Plasmid #119184)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 119184 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pAAV-MCS
  • Backbone manufacturer
    Stratagene
  • Backbone size w/o insert (bp) 4600
  • Total vector size (bp) 7200
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    SypHer2-DAAO-NES
  • Alt name
    D-amino Acid Oxidase
  • Alt name
    DAAO
  • Species
    R. gracilis
  • Insert Size (bp)
    2571
  • Promoter CMV
  • Tag / Fusion Protein
    • NES (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer TGTGTGCTGGCCCATCACTTT
  • 3′ sequencing primer ACAGGGATGCCACCCGTAGA
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Vsevolod Belousov
  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry

Depositor Comments

DAAO component of fusion protein received from Vsevolod Belousov, who's lab originally cloned DAAO.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-SypHer2-DAAO-NES was a gift from Thomas Michel (Addgene plasmid # 119184 ; http://n2t.net/addgene:119184 ; RRID:Addgene_119184)
  • For your References section:

    Chemogenetic generation of hydrogen peroxide in the heart induces severe cardiac dysfunction. Steinhorn B, Sorrentino A, Badole S, Bogdanova Y, Belousov V, Michel T. Nat Commun. 2018 Oct 2;9(1):4044. doi: 10.1038/s41467-018-06533-2. 10.1038/s41467-018-06533-2 PubMed 30279532
