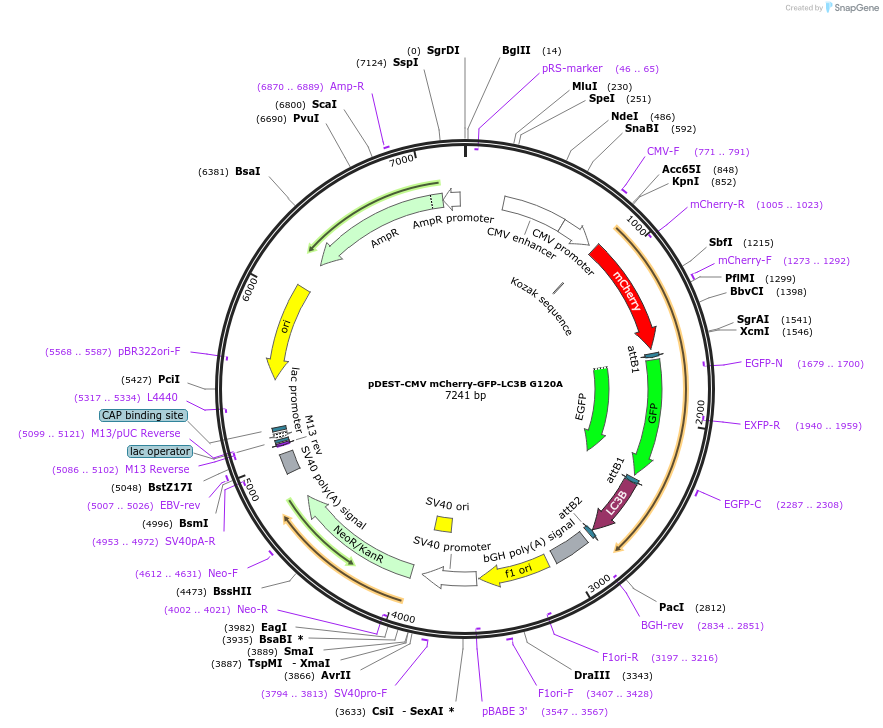

pDEST-CMV mCherry-GFP-LC3B G120A
(Plasmid #123235)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 123235 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 123235-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 123235-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    pDEST-CMV-N-Tandem-mCherry-EGFP
  • Backbone size w/o insert (bp) 7000
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Microtubule-associated proteins 1A/1B light chain 3B
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    378
  • Mutation
    Glycine 120 to Alanine
  • GenBank ID
    NM_022818.4
  • Entrez Gene
    MAP1LC3B (a.k.a. ATG8F, LC3B, MAP1A/1BLC3, MAP1LC3B-a)
  • Promoter CMV
  • Tags / Fusion Proteins
    • mCherry (N terminal on backbone)
    • EGFP (N terminal on backbone)

Cloning Information

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pDEST-CMV mCherry-GFP-LC3B G120A was a gift from Robin Ketteler (Addgene plasmid # 123235 ; http://n2t.net/addgene:123235 ; RRID:Addgene_123235)

  • For your References section:

    Redundancy of human ATG4 protease isoforms in autophagy and LC3/GABARAP processing revealed in cells. Agrotis A, Pengo N, Burden JJ, Ketteler R. Autophagy. 2019 Jan 21. doi: 10.1080/15548627.2019.1569925. 10.1080/15548627.2019.1569925 PubMed 30661429
