PurposeMammalian expression of rat LC3 fused to mRFP
-
Depositing Lab
-
Publication
-

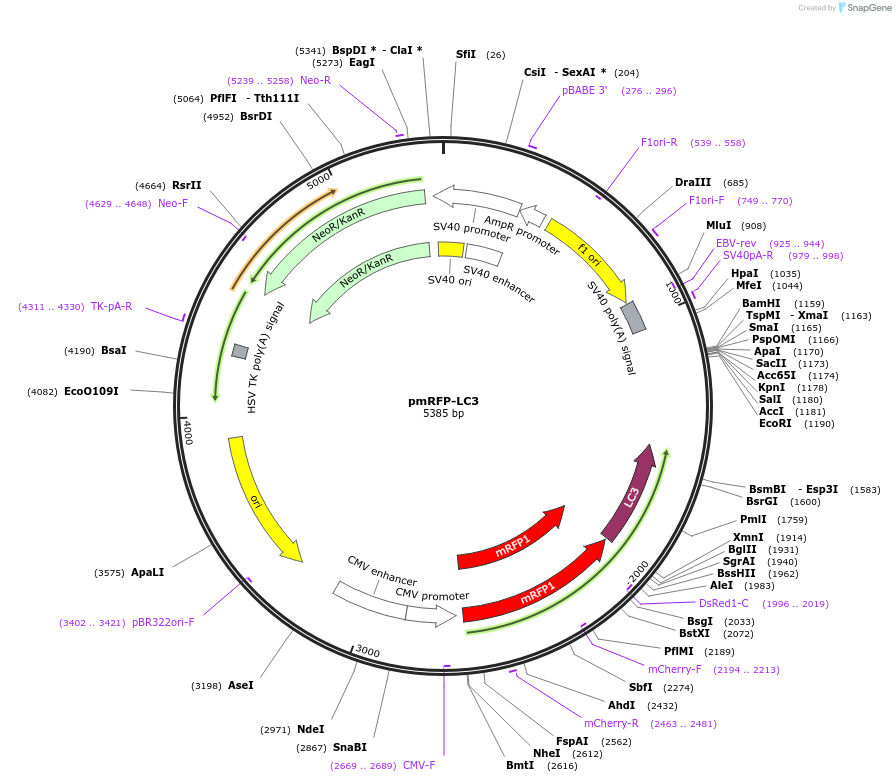

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | ||
---|---|---|---|---|---|---|
Plasmid | 21075 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $75 |
This material is available to academics and nonprofits only.
Backbone
-
Vector backbonepmRFP-C1
- Backbone size w/o insert (bp) 4500
-
Vector typeMammalian Expression
-
Selectable markersNeomycin (select with G418)
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namemicrotubule-associated protein 1 light chain 3 beta
-
Alt nameMap1lc3b
-
Alt nameLC3
-
Alt nameLC3b
-
SpeciesR. norvegicus (rat)
-
Insert Size (bp)738
-
MutationFirst ATG is not included.
-
GenBank IDU05784
-
Entrez GeneMap1lc3b (a.k.a. LC3B, Map1lc3, Mpl3, zbs559)
-
Tag
/ Fusion Protein
- mRFP (N terminal on backbone)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BglII (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer N/A (Common Sequencing Primers)
Resource Information
-
Terms and Licenses
-
Industry Terms
- Not Available to Industry
-
Articles Citing this Plasmid
Depositor Comments
Compbell RE, Tour O, Palmer AE, Steinbach PA, Baird GS, Zacharian DA, Tsien RY, A monomeric red fluorescent protein, Proc Natl Acad Sci USA. 2002, 99(12):7877-82
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pmRFP-LC3 was a gift from Tamotsu Yoshimori (Addgene plasmid # 21075 ; http://n2t.net/addgene:21075 ; RRID:Addgene_21075) -
For your References section:
Dissection of the autophagosome maturation process by a novel reporter protein, tandem fluorescent-tagged LC3. Kimura S, Noda T, Yoshimori T. Autophagy. . 3(5):452-60. PubMed 17534139
