pGTRm
(Plasmid
#127197)
-
PurposepGTRm is the template plasmid for PCR & golden gate assembly driven generation of polycistronic tRNA-gRNA sequences
-
Depositing Lab
-
Depositing OrganizationJohns Hopkins University and School of Medicine
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 127197 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 127197-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 127197-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepB322
- Backbone size w/o insert (bp) 2300
- Total vector size (bp) 2699
-
Vector typeTemplate plasmid for generation of Golden Gate PCR amplicons
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nametRNA-gRNA PCR template
-
gRNA/shRNA sequence-
- Promoter None
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site HindIII (not destroyed)
- 3′ cloning site SpeI (not destroyed)
- 5′ sequencing primer CAGGGTTATTGTCTCATGAGCGGA
- 3′ sequencing primer CCTGTGTGAAATTGTTATCCGCT
- (Common Sequencing Primers)
Resource Information
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 127197-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 127197-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pGTRm was a gift from Jordan Green (Addgene plasmid # 127197 ; http://n2t.net/addgene:127197 ; RRID:Addgene_127197) -
For your References section:
Poly(Beta-Amino Ester) Nanoparticles Enable Nonviral Delivery of CRISPR-Cas9 Plasmids for Gene Knockout and Gene Deletion. Rui Y, Varanasi M, Mendes S, Yamagata HM, Wilson DR, Green JJ. Mol Ther Nucleic Acids. 2020 Apr 21;20:661-672. doi: 10.1016/j.omtn.2020.04.005. 10.1016/j.omtn.2020.04.005 PubMed 32380416

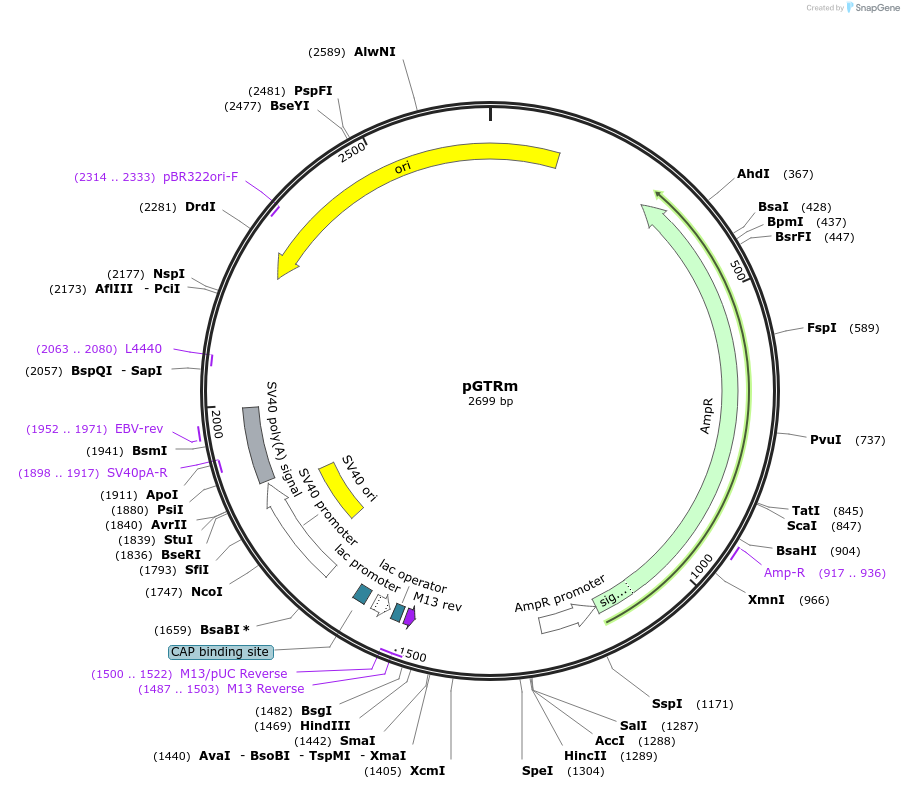

Map uploaded by the depositor.
