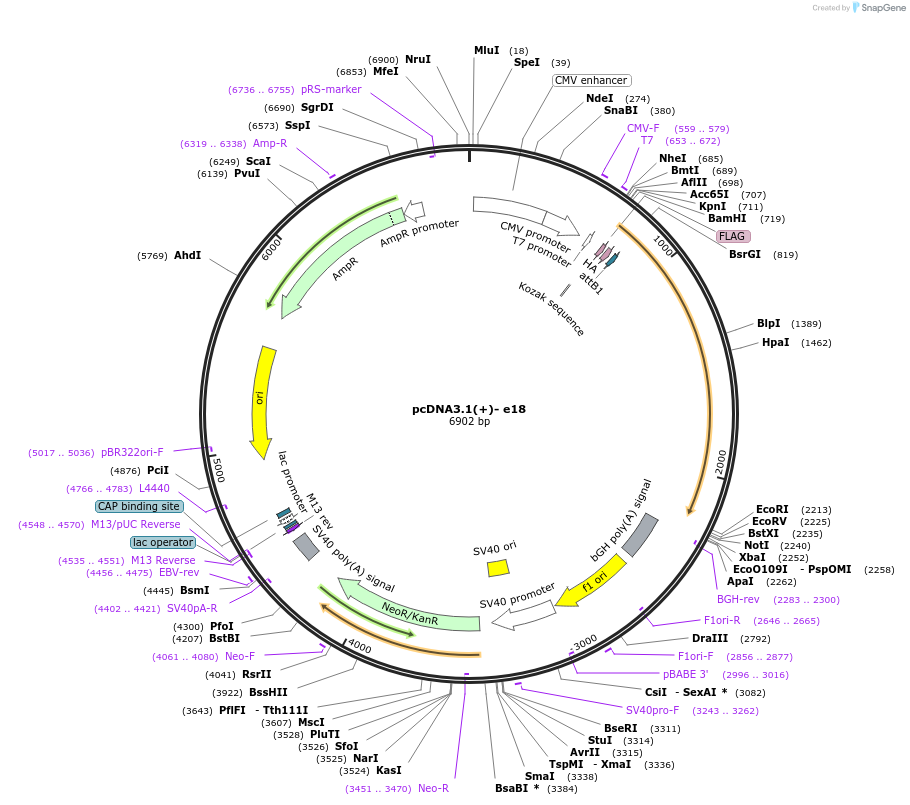

pcDNA3.1(+)- e18
(Plasmid #131670)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 131670 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pcDNA3.1(+)
  • Backbone size w/o insert (bp) 5444
  • Total vector size (bp) 6821
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    e18 (engineered RAD18 with SAP domain deleted)
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1377
  • GenBank ID
  • Entrez Gene
    RAD18 (a.k.a. RNF73)
  • Promoter CMV
  • Tags / Fusion Proteins
    • FLAG (N terminal on backbone)
    • HA (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (unknown if destroyed)
  • 3′ cloning site EcoRI (unknown if destroyed)
  • 5′ sequencing primer CMV Forward
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    RAD18 gene was obtained from the ORFeome v7 (ID:1782)
  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3.1(+)- e18 was a gift from Alberto Ciccia (Addgene plasmid # 131670 ; http://n2t.net/addgene:131670 ; RRID:Addgene_131670)
  • For your References section:

    Stimulation of CRISPR-mediated homology-directed repair by an engineered RAD18 variant. Nambiar TS, Billon P, Diedenhofen G, Hayward SB, Taglialatela A, Cai K, Huang JW, Leuzzi G, Cuella-Martin R, Palacios A, Gupta A, Egli D, Ciccia A. Nat Commun. 2019 Jul 30;10(1):3395. doi: 10.1038/s41467-019-11105-z. 10.1038/s41467-019-11105-z PubMed 31363085
