(Plasmid #153061)


This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 153061 Standard format: Plasmid sent in bacteria as agar stab 1 $85


  • Vector backbone
  • Backbone size w/o insert (bp) 8871
  • Total vector size (bp) 10116
  • Vector type
    Mammalian Expression, Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy


  • Gene/Insert name
  • Alt name
  • Alt name
  • Alt name
  • Species
    H. sapiens (human)
  • Insert Size (bp)
  • Entrez Gene
    BHLHE40 (a.k.a. BHLHB2, Clast5, DEC1, HLHB2, SHARP-2, SHARP2, STRA13, Stra14)
  • Promoter EF1α

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer TTCCATTTCAGGTGTCGTGA
  • 3′ sequencing primer ACACCGGCCTTATTCCAAG
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

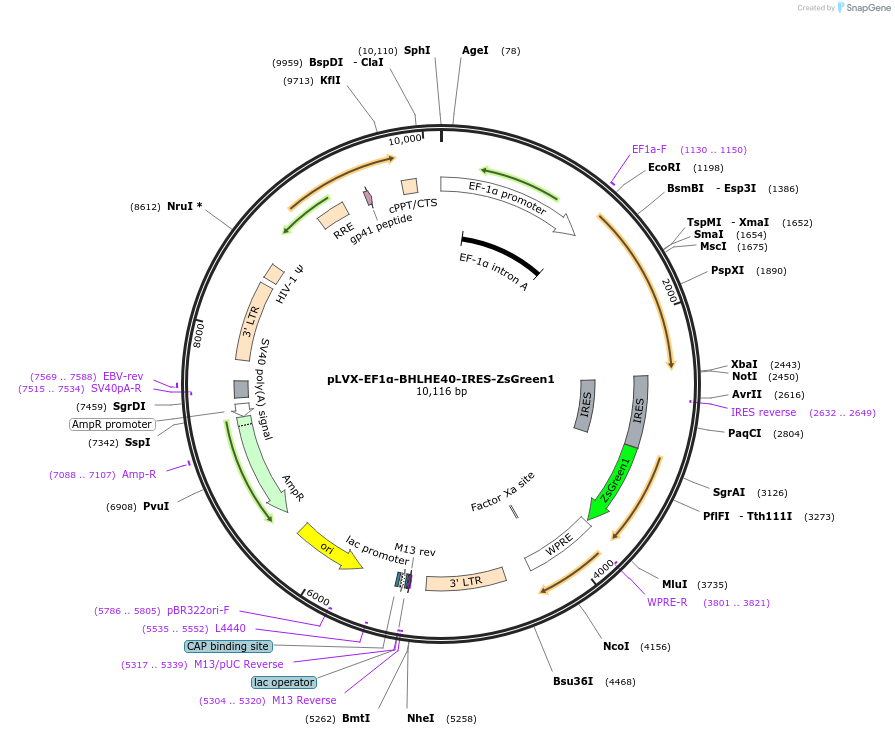

    pLVX-EF1α-BHLHE40-IRES-ZsGreen1 was a gift from Silvia Monticelli (Addgene plasmid # 153061 ; ; RRID:Addgene_153061)
  • For your References section:

    A molecular network regulating the proinflammatory phenotype of human memory T lymphocytes. Emming S, Bianchi N, Polletti S, Balestrieri C, Leoni C, Montagner S, Chirichella M, Delaleu N, Natoli G, Monticelli S. Nat Immunol. 2020 Apr;21(4):388-399. doi: 10.1038/s41590-020-0622-8. Epub 2020 Mar 16. 10.1038/s41590-020-0622-8 PubMed 32205878
