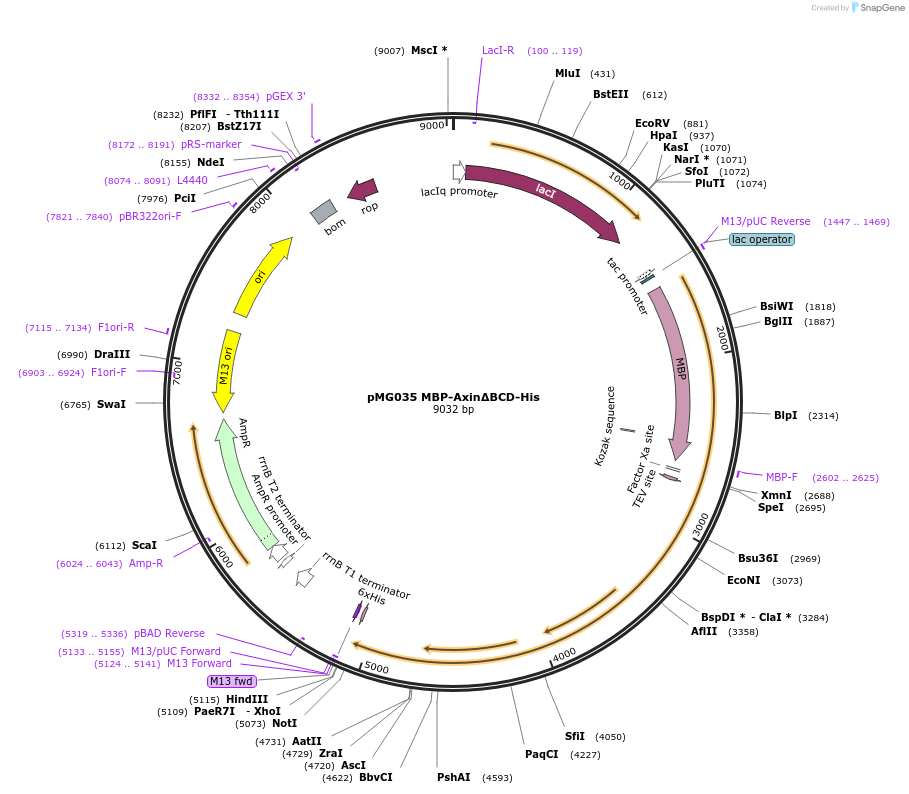

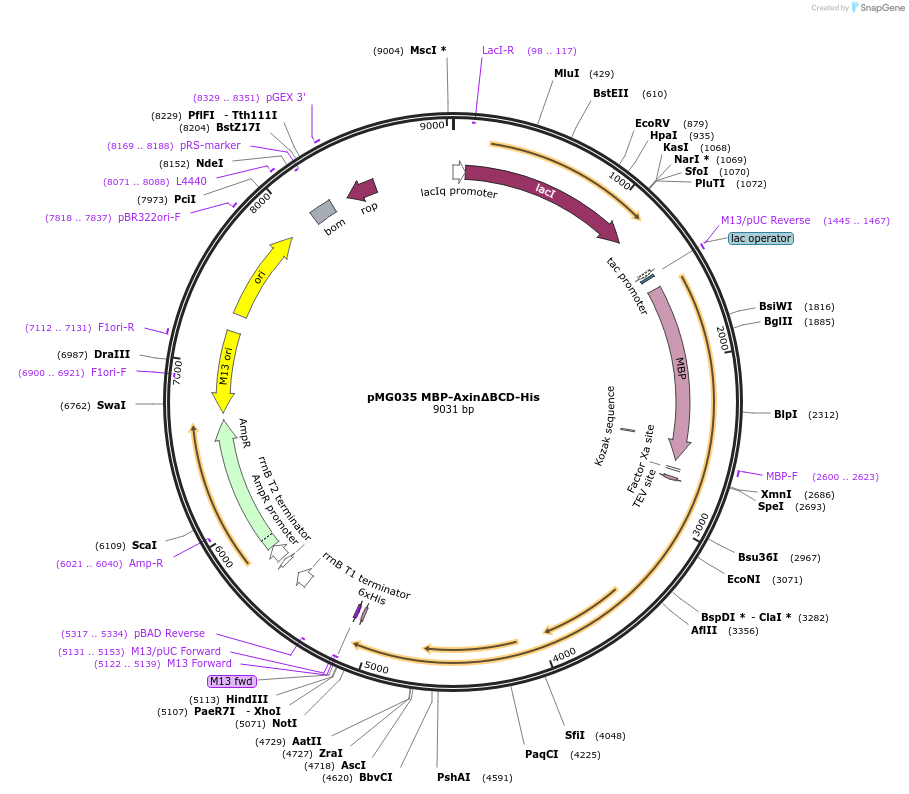

pMG035 MBP-Axin∆BCD-His
(Plasmid #154053)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 154053 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pMBP-MG
  • Backbone manufacturer
    New England Biolabs
  • Backbone size w/o insert (bp) 6716
  • Total vector size (bp) 9194
  • Modifications to backbone
    Modified to include an N-terminal TEV-cleavable MBP tag and a C-terminal His6 tag
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    Axin1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2316
  • GenBank ID
    BC000251
  • Entrez Gene
    AXIN1 (a.k.a. AXIN, PPP1R49)
  • Promoter Tac
  • Tags / Fusion Proteins
    • MBP (N terminal on backbone)
    • His6 (C terminal on backbone)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer MalE Forward GGTCGTCAGACTGTCGATGAAGCC
  • 3′ sequencing primer M13F Reverse TGTAAAACGACGGCCAGT
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Derived from hAxin1-rLuc, a gift from Randall Moon

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pMG035 MBP-Axin∆BCD-His was a gift from Jesse Zalatan (Addgene plasmid # 154053 ; http://n2t.net/addgene:154053 ; RRID:Addgene_154053)
  • For your References section:

    The Scaffold Protein Axin Promotes Signaling Specificity within the Wnt Pathway by Suppressing Competing Kinase Reactions. Gavagan M, Fagnan E, Speltz EB, Zalatan JG. Cell Syst. 2020 Jun 24;10(6):515-525.e5. doi: 10.1016/j.cels.2020.05.002. Epub 2020 Jun 17. 10.1016/j.cels.2020.05.002 PubMed 32553184
