pMEH361 Hspa8 MS2 HA
(Plasmid
#168218)
-
PurposeMammalian expression of heat shock 70 kDa protein 8 fused to the MS2 dimer and C-terminal HA tag
-
Depositing Lab
-
Depositing OrganizationNorthwestern University
Located in United States of America -
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 168218 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 168218-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 168218-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepcDNA 3.1+ Hygro
-
Backbone manufacturerClontech
- Backbone size w/o insert (bp) 5573
- Total vector size (bp) 8276
-
Vector typeMammalian Expression
-
Selectable markersHygromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameHspa8
-
SpeciesH. sapiens (human)
-
Insert Size (bp)2703
- Promoter CMV
-
Tags
/ Fusion Proteins
- MS2 dimer (C terminal on insert)
- HA (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site KpnI (not destroyed)
- 3′ cloning site NotI (not destroyed)
- 5′ sequencing primer CMVF CGCAAATGGGCGGTAGGCGTG
- 3′ sequencing primer BGHR TAGAAGGCACAGTCGAGG
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 168218-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 168218-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pMEH361 Hspa8 MS2 HA was a gift from Joshua Leonard (Addgene plasmid # 168218 ; http://n2t.net/addgene:168218 ; RRID:Addgene_168218) -
For your References section:
A platform for actively loading cargo RNA to elucidate limiting steps in EV-mediated delivery. Hung ME, Leonard JN. J Extracell Vesicles. 2016 May 13;5:31027. doi: 10.3402/jev.v5.31027. eCollection 2016. PubMed 27189348

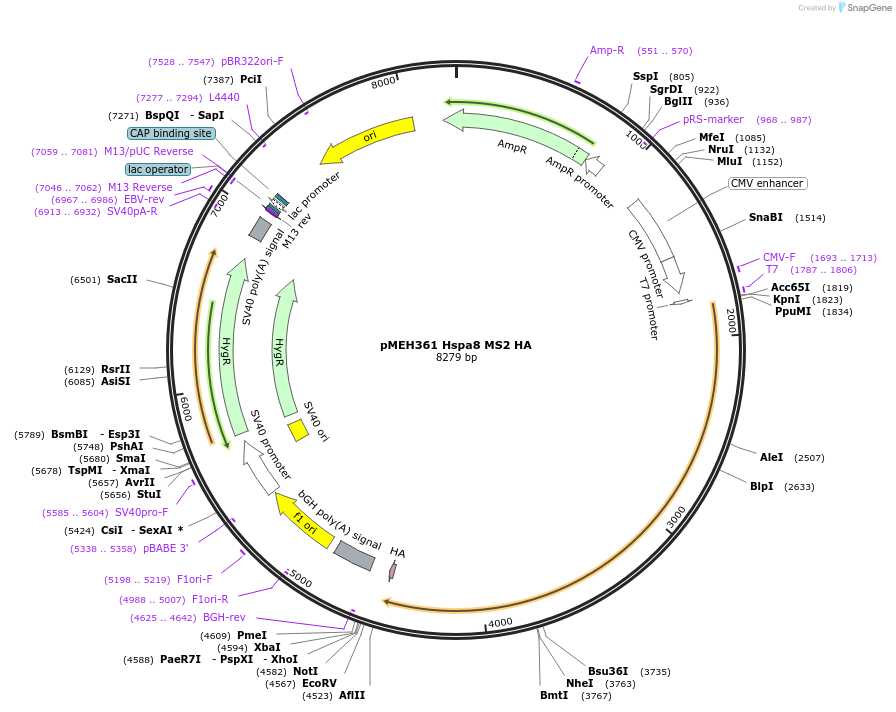

Map uploaded by the depositor.
