px459-AMBRA1 #3
(Plasmid
#172606)
-
PurposeExpresses gRNA #3 against AMBRA1 and Cas9 from S. pyogenes with 2A-Puro
-
Depositing Lab
-
Depositing OrganizationNYU Grossman School of Medicine
Located in United States of America -

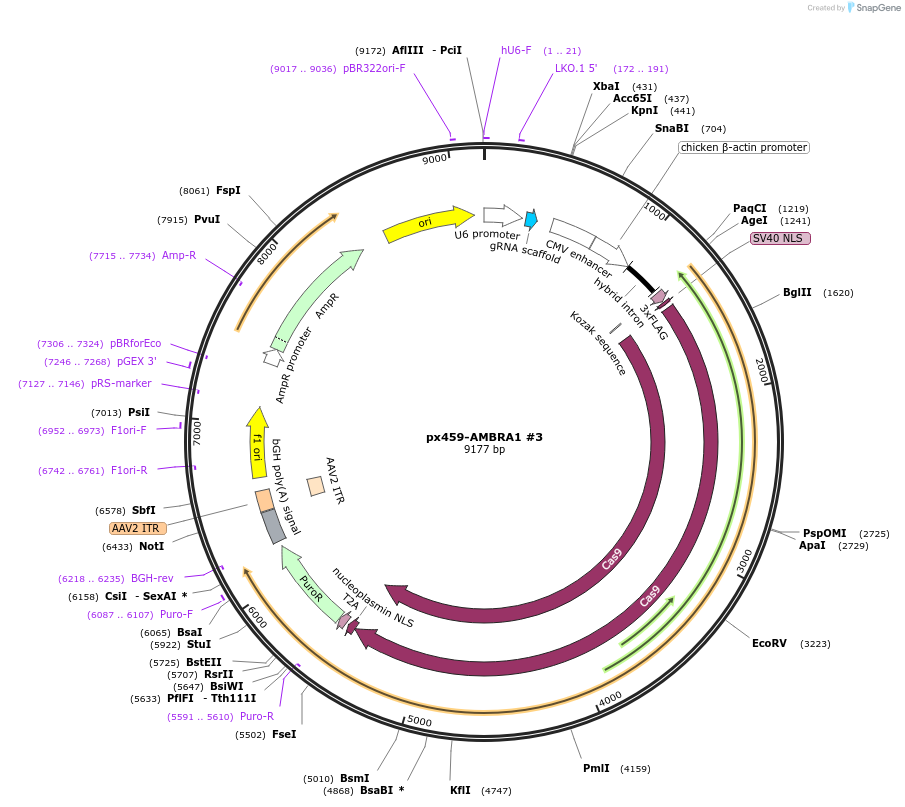

Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 172606 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $94 | |
| DNA | 172606-D50 | 50 μg of DNA in Tris buffer | $495 | ||
| DNA | 172606-D100 | 100 μg of DNA in Tris buffer | $585 | ||
Backbone
-
Vector backbonepx459
-
Vector typeMammalian Expression, CRISPR
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberUnknown
Gene/Insert
-
Gene/Insert namegRNA against AMBRA1
-
gRNA/shRNA sequenceTGGTAGAAGATAAAACCCGG
-
SpeciesH. sapiens (human)
-
Insert Size (bp)20
-
Entrez GeneAMBRA1 (a.k.a. DCAF3, WDR94)
- Promoter U6
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BbsI (destroyed during cloning)
- 3′ cloning site BbsI (destroyed during cloning)
- 5′ sequencing primer GACTATCATATGCTTACCGT
- (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
DNA (Catalog # 172606-D50)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 50 μg
- Concentration 1 μg/μL
- Pricing $495 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
DNA (Catalog # 172606-D100)
Purpose
Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.
Delivery
- Amount 100 μg
- Concentration 1 μg/μL
- Pricing $585 USD
- Storage 4 ℃ (short-term) or -20 ℃ (long-term)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Quality Control
Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.
Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
px459-AMBRA1 #3 was a gift from Michele Pagano (Addgene plasmid # 172606 ; http://n2t.net/addgene:172606 ; RRID:Addgene_172606) -
For your References section:
CRL4(AMBRA1) is a master regulator of D-type cyclins. Simoneschi D, Rona G, Zhou N, Jeong YT, Jiang S, Milletti G, Arbini AA, O'Sullivan A, Wang AA, Nithikasem S, Keegan S, Siu Y, Cianfanelli V, Maiani E, Nazio F, Cecconi F, Boccalatte F, Fenyo D, Jones DR, Busino L, Pagano M. Nature. 2021 Apr;592(7856):789-793. doi: 10.1038/s41586-021-03445-y. Epub 2021 Apr 14. 10.1038/s41586-021-03445-y PubMed 33854235
