(Plasmid #40244)


Item Catalog # Description Quantity Price (USD)
Plasmid 40244 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin and Kanamycin, 100 & 50 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number


  • Gene/Insert name
  • Species
    Synechococcus elongatus PCC 7942
  • Insert Size (bp)
  • Promoter n/a

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site n/a (unknown if destroyed)
  • 3′ cloning site n/a (unknown if destroyed)
  • 5′ sequencing primer n/a
  • 3′ sequencing primer n/a
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

NSII vector

Lux Genes: luxCDE

Directs luciferase substrate synthesis in PCC7942. Synechococcus luxAB reporter strains glow without decanal addition

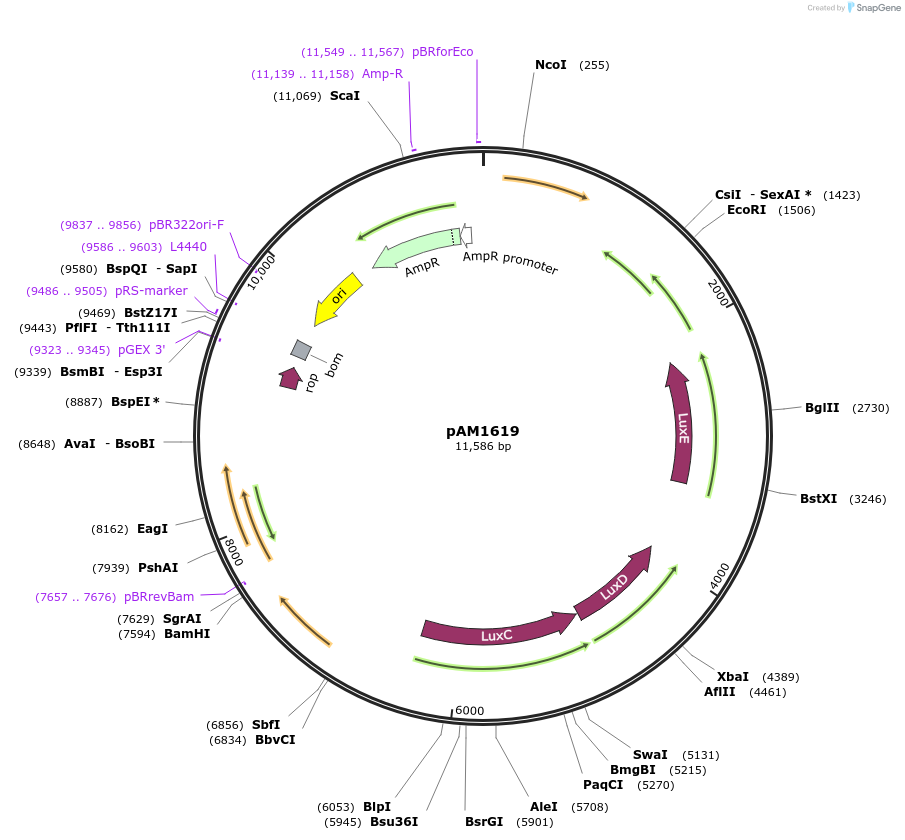

PpsbAI fragment as SalI-PvuII fragment from pAM1335 inserted upstream of luxCDE in SalI-StuI of pAM1607 (NSII, Km, luxCDE).

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAM1619 was a gift from Susan Golden (Addgene plasmid # 40244 ; ; RRID:Addgene_40244)
  • For your References section:

    Detection of rhythmic bioluminescence from luciferase reporters in cyanobacteria. Mackey SR, Ditty JL, Clerico EM, Golden SS. Methods Mol Biol. 2007;362:115-29. 10.1007/978-1-59745-257-1_8 PubMed 17417005
