(Plasmid #40252)


Item Catalog # Description Quantity Price (USD)
Plasmid 40252 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Total vector size (bp) 5300
  • Vector type
    Cyanobacteria cloning vector

Growth in Bacteria

  • Bacterial Resistance(s)
    Gentamicin, 10 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number


  • Gene/Insert name
    Gm cassette (BssHII+SphI)
  • Species
    Synechococcus elongatus PCC 7942
  • Insert Size (bp)
  • Promoter n/a

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site n/a (unknown if destroyed)
  • 3′ cloning site n/a (unknown if destroyed)
  • 5′ sequencing primer n/a
  • 3′ sequencing primer n/a
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

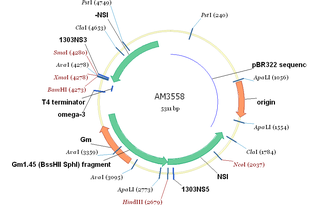

NS1 vector

Gm resistant version of pAM1303.

Both pAM1303 and pAM3511 were digested with BssHII and SphI, and then mix-ligated. The accC1gene (Gm) replaces the aadA gene (SpSm) in the Ω cassette. The upstream T4 terminator was lost due to SphI digestion.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAM3558 was a gift from Susan Golden (Addgene plasmid # 40252 ; ; RRID:Addgene_40252)
  • For your References section:

    The complete sequence and functional analysis of pANL, the large plasmid of the unicellular freshwater cyanobacterium Synechococcus elongatus PCC 7942. Chen Y, Holtman CK, Magnuson RD, Youderian PA, Golden SS. Plasmid. 2008 May;59(3):176-92. Epub 2008 Mar 18. 10.1016/j.plasmid.2008.01.005 PubMed 18353436
