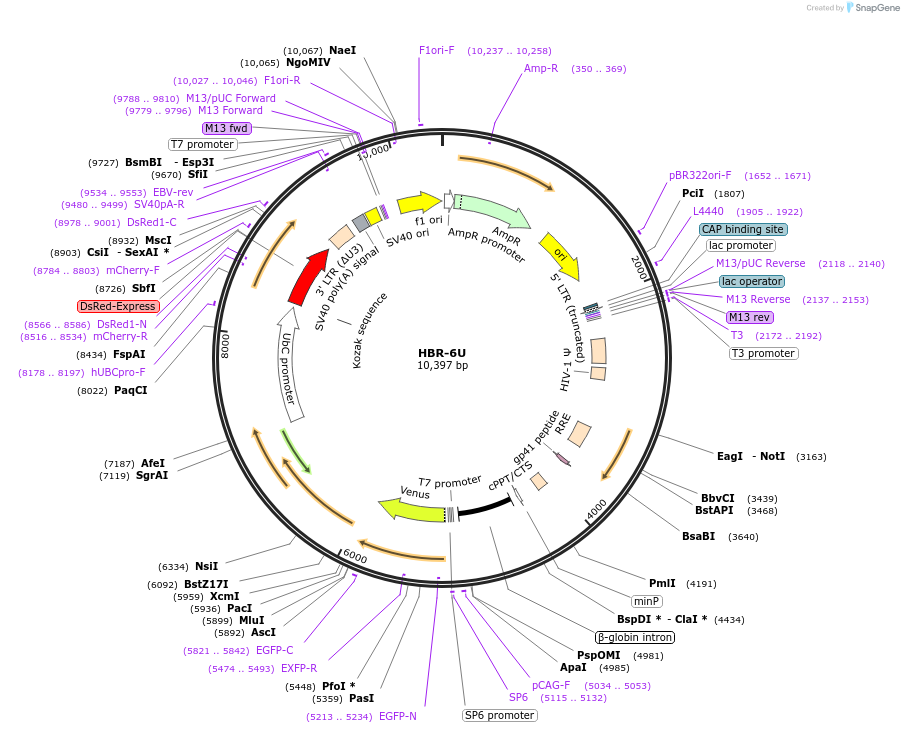

HBR-6U
(Plasmid #42621)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 42621 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Stbl3
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    6 x HIF binding element
  • Species
    Synthetic
  • Insert Size (bp)
    315
  • Tag / Fusion Protein
    • eYFP (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site ClaI (unknown if destroyed)
  • 3′ cloning site XhoI (destroyed during cloning)
  • 5′ sequencing primer CAGTGCAGGGGAAAGAATAGTAG
  • (Common Sequencing Primers)

Resource Information

Depositor Comments

HIF reporter construct was generated with HIF1α consensus binding site CGTG followed HIF2α site TACGTG together as one unit of binding site for HIFα factors and repeated them in tandem 6 times (HBR-6U), with 5 base pairs of nucleotides of various combinations spacing between. Induction element CACAG, a DNA element necessary for hypoxic induction, was evenly inserted into the whole sequences three times to assist in the induction process.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    HBR-6U was a gift from Hannele RuoholaBaker (Addgene plasmid # 42621 ; http://n2t.net/addgene:42621 ; RRID:Addgene_42621)
  • For your References section:

    Assessment of hypoxia inducible factor levels in cancer cell lines upon hypoxic induction using a novel reporter construct. Zhou W, Dosey TL, Biechele T, Moon RT, Horwitz MS, Ruohola-Baker H. PLoS One. 2011;6(11):e27460. doi: 10.1371/journal.pone.0027460. Epub 2011 Nov 23. 10.1371/journal.pone.0027460 PubMed 22132102
