(Plasmid #47326)


Item Catalog # Description Quantity Price (USD)
Plasmid 47326 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone manufacturer
  • Backbone size w/o insert (bp) 5546

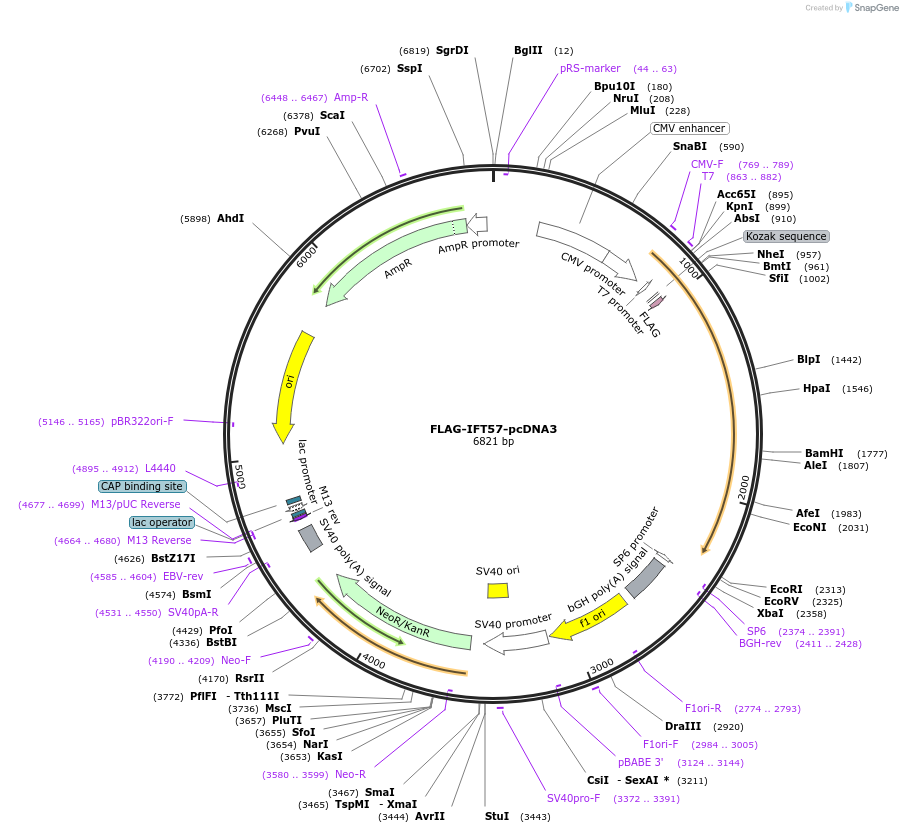

  • Total vector size (bp) 6821
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number
    High Copy


  • Gene/Insert name
  • Alt name
  • Species
    M. musculus (mouse)
  • Entrez Gene
    Ift57 (a.k.a. 4833420A15Rik, Esrrbl1, Hippi, MHS4R2)
  • Promoter cmv
  • Tag / Fusion Protein
    • FLAG epitope (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site KpnI (not destroyed)
  • 3′ cloning site BamHI (unknown if destroyed)
  • 5′ sequencing primer CTAGAGAACCCACTGCTTACTG
  • 3′ sequencing primer TAGAAGGCACAGTCGAGGCTGATC
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    FLAG-IFT57-pcDNA3 was a gift from Richard Maurer (Addgene plasmid # 47326 ; ; RRID:Addgene_47326)
  • For your References section:

    Interaction of mouse TTC30/DYF-1 with multiple intraflagellar transport complex B proteins and KIF17. Howard PW, Jue SF, Maurer RA. Exp Cell Res. 2013 Jun 25. pii: S0014-4827(13)00271-1. doi: 10.1016/j.yexcr.2013.06.010. 10.1016/j.yexcr.2013.06.010 PubMed 23810713
