PurposeTemplate plasmid for amplification of a selection cassette that includes two transcription terminator elements, an I-SceI site and a trimethoprim resistance gene.
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||59384||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
This material is available to academics and nonprofits only.

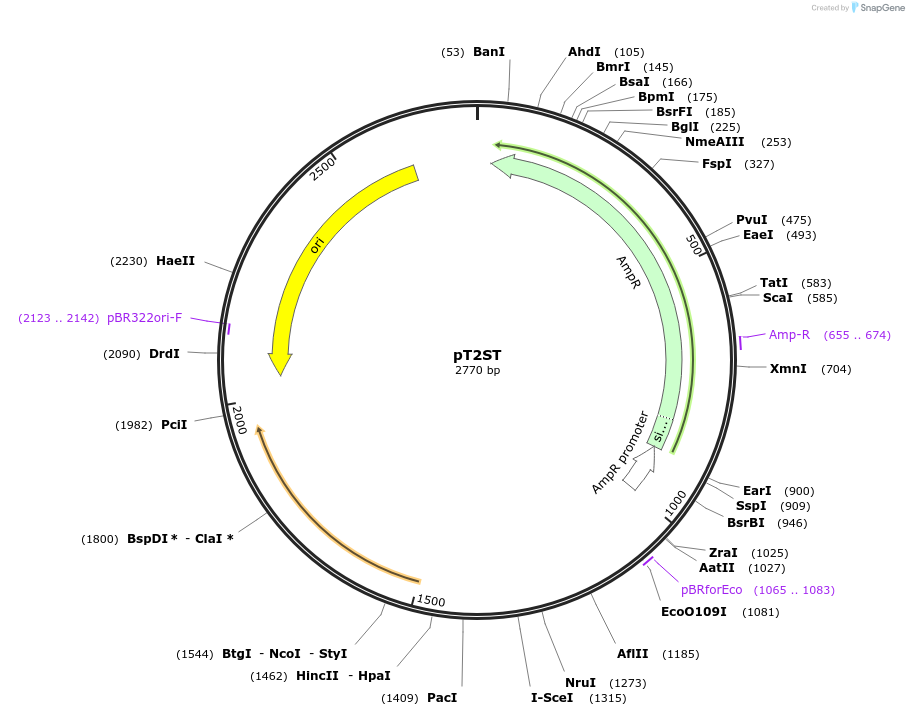

Vector backbonepHA1887, an 1887 bp fragment extending from bp 690 to bp 2576 of pUC19 (Acc. No. M77789)
Backbone manufacturerCopley Lab
- Backbone size w/o insert (bp) 1887
- Total vector size (bp) 2770
Growth in Bacteria
Bacterial Resistance(s)Ampicillin and Trimethoprim
Copy numberHigh Copy
Insert Size (bp)883
- Cloning method Gibson Cloning
- 5′ sequencing primer tatcagggttattgtctcatg
- 3′ sequencing primer acttgagcgtcgatttttgtg (Common Sequencing Primers)
iGEM parts BBa_B1002 and BBa_B1006 were used to build the double terminator element. The trimethoprim resistance gene was taken from EZ-Tn5™ <DHFR-1> (Epicentre). We developed GetX (https://sourceforge.net/projects/getx/), a stand-alone python script that allows the user to design mutation cassettes for scarless genome editing in bacteria using our previously described two-step recombination method. Please see the document linked under the Resource Information heading above for additional information on installing and using the script.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:pT2ST was a gift from Shelley Copley (Addgene plasmid # 59384 ; http://n2t.net/addgene:59384 ; RRID:Addgene_59384)
For your References section:A versatile and highly efficient method for scarless genome editing in Escherichia coli and Salmonella enterica. Kim J, Webb AM, Kershner JP, Blaskowski S, Copley SD. BMC Biotechnol. 2014 Sep 25;14(1):84. 10.1186/1472-6750-14-84 PubMed 25255806
