APEX2 - Tubulin in pEGFP
(Plasmid #66171)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 66171 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 66171-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 66171-D100 100 μg of DNA in Tris buffer $585
Add to Cart

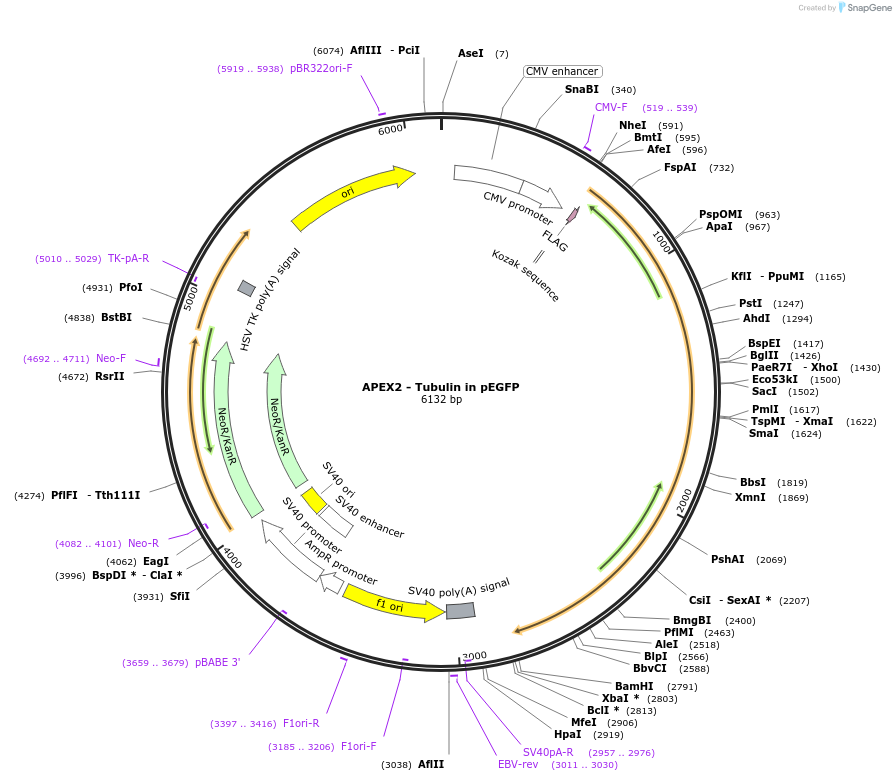

Backbone

  • Vector backbone
    pEGFP
  • Backbone manufacturer
    Clonetech
  • Backbone size w/o insert (bp) 3954
  • Total vector size (bp) 6132
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    XL1 Blue
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    APEX2 - alpha tubulin
  • Species
    Synthetic
  • Insert Size (bp)
    2178
  • Mutation
    APEX2 contains 4 mutations relative to wt soybean APX: K14D, W41F, E112K, A134P
  • Promoter CMV
  • Tag / Fusion Protein
    • Flag epitope tag (DYKDDDDK) (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer CMVf (CGCAAATGGGCGGTAGGCGTG)
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    APEX2 - Tubulin in pEGFP was a gift from Alice Ting (Addgene plasmid # 66171 ; http://n2t.net/addgene:66171 ; RRID:Addgene_66171)

  • For your References section:

    Directed evolution of APEX2 for electron microscopy and proximity labeling. Lam SS, Martell JD, Kamer KJ, Deerinck TJ, Ellisman MH, Mootha VK, Ting AY. Nat Methods. 2014 Nov 24. doi: 10.1038/nmeth.3179. 10.1038/nmeth.3179 PubMed 25419960
