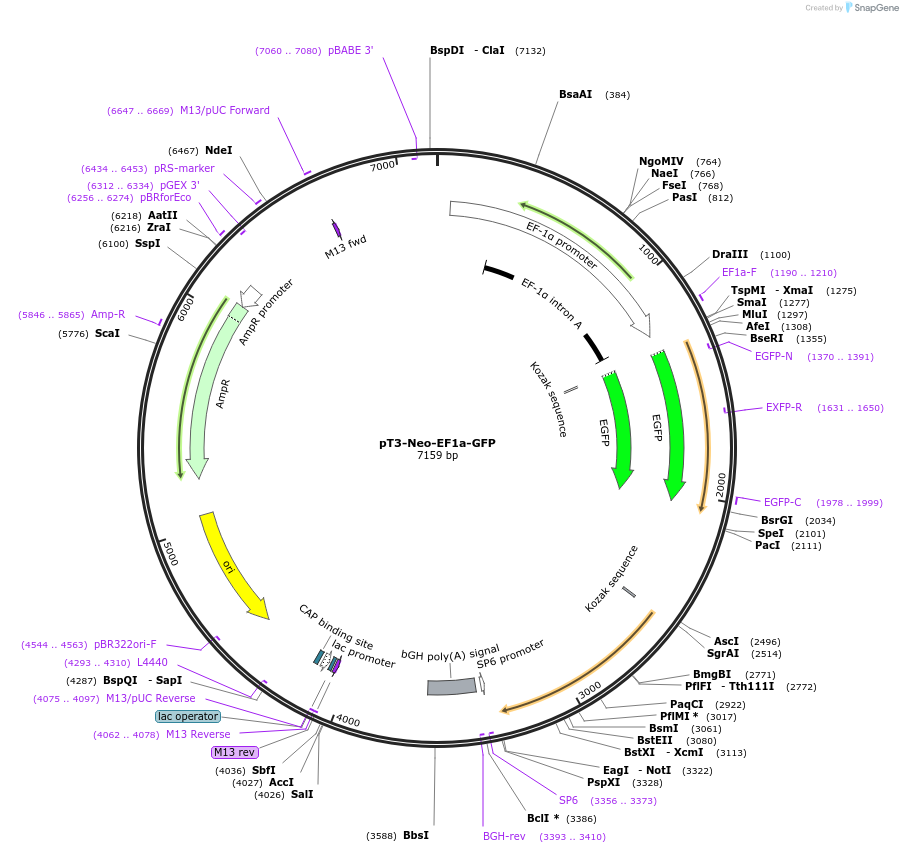

Purpose(Empty Backbone) Sleeping Beaquty (SB) vector encoding G418 resistance and GFP from two separate promoters
|Item||Catalog #||Description||Quantity||Price (USD)|
|Plasmid||69134||Standard format: Plasmid sent in bacteria as agar stab||1||$75|
This material is available to academics and nonprofits only.
- Backbone size (bp) 4222
Vector typeMammalian Expression ; Sleeping Beauty transposon
- Promoter U3MSCV
Selectable markersNeomycin (select with G418)
Growth in Bacteria
Copy numberHigh Copy
- Cloning method Restriction Enzyme
- 5′ sequencing primer ACTAACCAATCAGTTCGCTTCTC
- 3′ sequencing primer TAGAAGGCACAGTCGAGG (Common Sequencing Primers)
Terms and Licenses
- Not Available to Industry
Article Citing this Plasmid
The EF1a-GFP cassette was isolated from the plasmid pRRLsin.PPTs.EF1a.GFPpre (Bonamino et al., 2004) (provided by Dr. Didier Trono, EPFL, Switzerland) after digestion with ClaI/BstBI and inserted in pT3-Neo previously digested with ClaI.
EGFP has additional 10 amino acids on the c-terminus of EGFP (SGLRSRLASS). Depositor states that these amino acids do not affect plasmid function.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
For your Materials & Methods section:pT3-Neo-EF1a-GFP was a gift from Martin Bonamino (Addgene plasmid # 69134 ; http://n2t.net/addgene:69134 ; RRID:Addgene_69134)
For your References section:An Efficient Electroporation Protocol for the Genetic Modification of Mammalian Cells. Chicaybam L, Barcelos C, Peixoto B, Carneiro M, Limia CG, Redondo P, Lira C, Paraguassu-Braga F, Vasconcelos ZF, Barros L, Bonamino MH. Front Bioeng Biotechnol. 2017 Jan 23;4:99. doi: 10.3389/fbioe.2016.00099. eCollection 2016. 10.3389/fbioe.2016.00099 PubMed 28168187
