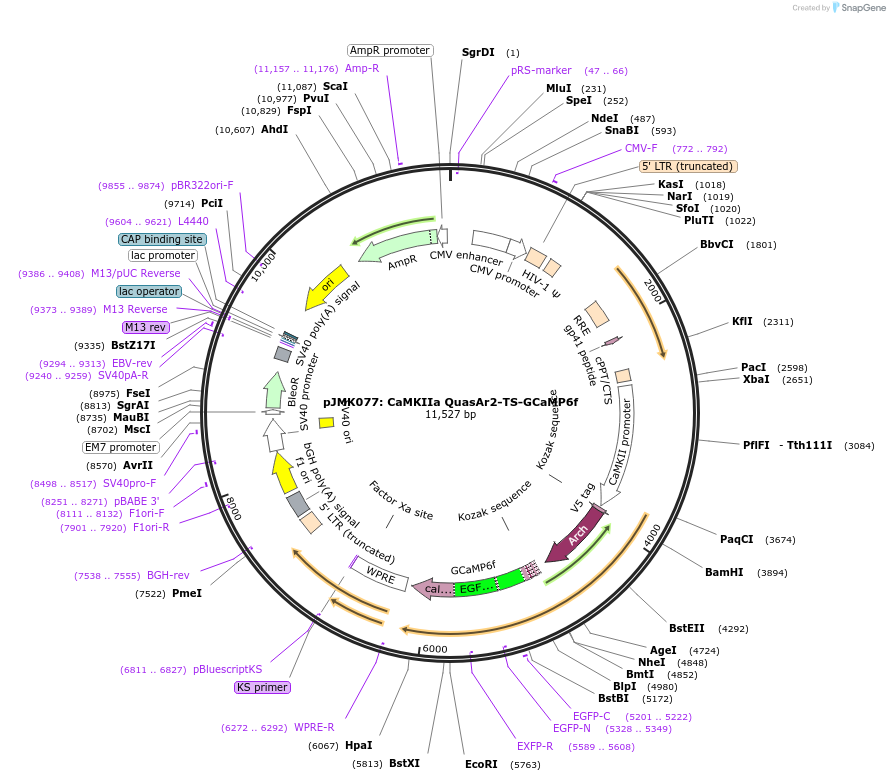

pJMK077: CaMKIIa QuasAr2-TS-GCaMP6f
(Plasmid #72304)


Item Catalog # Description Quantity Price (USD)
Plasmid 72304 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.


  • Vector backbone
  • Backbone manufacturer
    Pavel Osten
  • Backbone size w/o insert (bp) 9235
  • Total vector size (bp) 11528
  • Vector type
    Mammalian Expression, Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy


  • Gene/Insert name
  • Alt name
    QuasAr2 + GCaMP6f
  • Species
  • Insert Size (bp)
  • Promoter CaMKIIa
  • Tag / Fusion Protein
    • TS (C terminal on insert)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer gcctctttgccccacttaat
  • 3′ sequencing primer CATAGCGTAAAAGGAGCAACA
  • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pJMK077: CaMKIIa QuasAr2-TS-GCaMP6f was a gift from Adam Cohen (Addgene plasmid # 72304 ; ; RRID:Addgene_72304)
  • For your References section:

    Cardiotoxicity screening with simultaneous optogenetic pacing, voltage imaging and calcium imaging. Dempsey GT, Chaudhary KW, Atwater N, Nguyen C, Brown BS, McNeish JD, Cohen AE, Kralj JM. J Pharmacol Toxicol Methods. 2016 May 13. pii: S1056-8719(16)30044-2. doi: 10.1016/j.vascn.2016.05.003. 10.1016/j.vascn.2016.05.003 PubMed 27184445
