AAV-hSyn-FlicR1
(Plasmid #74143)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 74143 Plasmid sent as bacteria in agar stab 1 $65

This material is available to academics and nonprofits only.

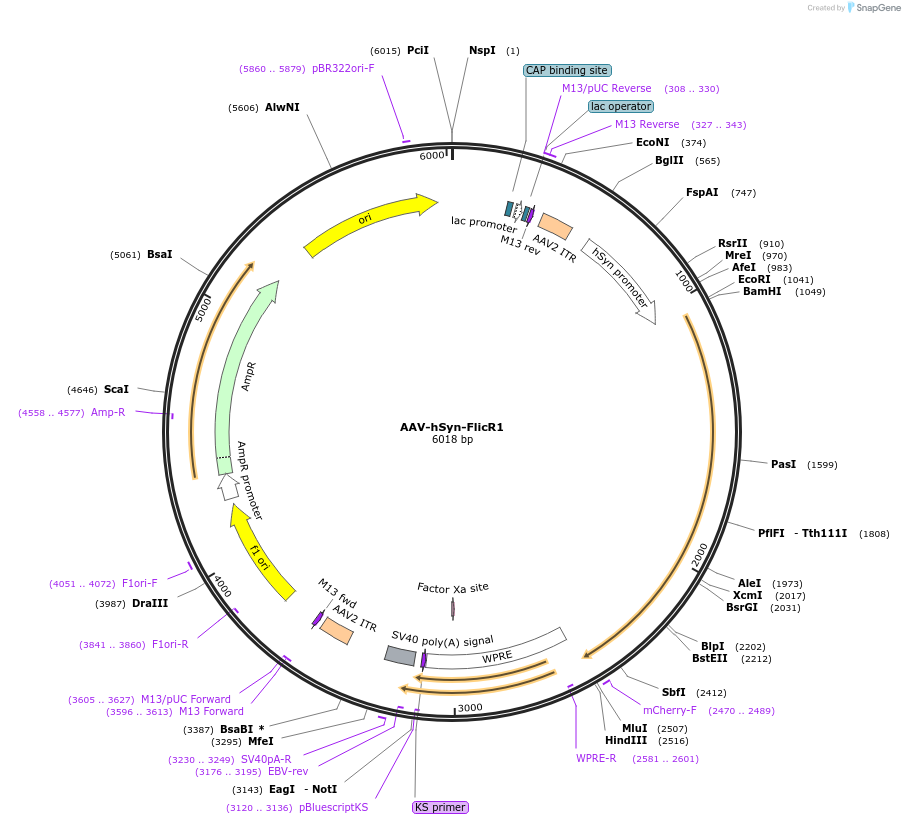

Backbone

  • Vector backbone
    pAAV
  • Backbone size w/o insert (bp) 4557
  • Total vector size (bp) 6018
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    FlicR1
  • Alt name
    Fluorescent indicator for voltage imaging Red
  • Species
    Synthetic
  • Insert Size (bp)
    1461
  • Promoter hSyn

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer GAGGAGTCGTGTCGTGCC
  • 3′ sequencing primer CATAGCGTAAAAGGAGCAACA
  • (Common Sequencing Primers)

Resource Information

  • Terms and Licenses
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    AAV-hSyn-FlicR1 was a gift from Robert Campbell (Addgene plasmid # 74143)
  • For your References section:

    A Bright and Fast Red Fluorescent Protein Voltage Indicator That Reports Neuronal Activity in Organotypic Brain Slices. Abdelfattah AS, Farhi SL, Zhao Y, Brinks D, Zou P, Ruangkittisakul A, Platisa J, Pieribone VA, Ballanyi K, Cohen AE, Campbell RE. J Neurosci. 2016 Feb 24;36(8):2458-72. doi: 10.1523/JNEUROSCI.3484-15.2016. 10.1523/JNEUROSCI.3484-15.2016 PubMed 26911693
