(Plasmid #8728)


This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 8728 Standard format: Plasmid sent in bacteria as agar stab 1 $85


  • Vector backbone
  • Backbone size w/o insert (bp) 4894
  • Vector type
    Yeast Expression
  • Selectable markers

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
  • Growth Strain(s)
  • Copy number


  • Gene/Insert name
  • Alt name
    Codon-optimized GFP variant
  • Alt name

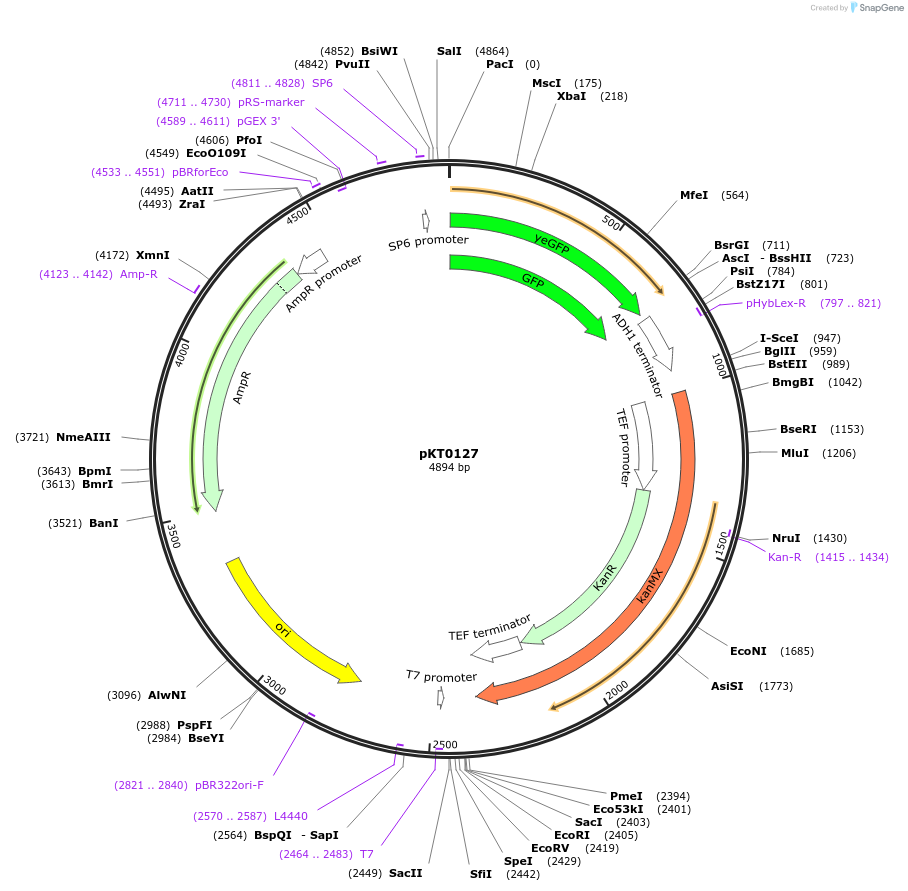

    pKT127 (pFA6a–link–yEGFP–Kan)
  • Tag / Fusion Protein
    • Codon optimized linker (N terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site PacI (not destroyed)
  • 3′ cloning site AscI (not destroyed)
  • 5′ sequencing primer SP6
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Full name of this plasmid is pFA6a-link-yEGFP-KanR. An codon-optimized linker was added into the yEGFP to improve expression level. The G418 resistance marker (KanR) was introduced into the plasmid by subcloning the BglII/EcoRI fragment of pDH3 (Hailey et al., 2002) into the plasmid, in place of SpHIS5.

The yeast GFP used to create this plasmid contained a point mutation M233I that is present in all GFP variants derived from this original yEGFP. The mutation had no effect on fluorescence (see associated publication for more details).

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pKT0127 was a gift from Kurt Thorn (Addgene plasmid # 8728 ; ; RRID:Addgene_8728)
  • For your References section:

    Optimized cassettes for fluorescent protein tagging in Saccharomyces cerevisiae. Sheff MA, Thorn KS. Yeast 2004 Jun;21(8):661-70. 10.1002/yea.1130 PubMed 15197731
