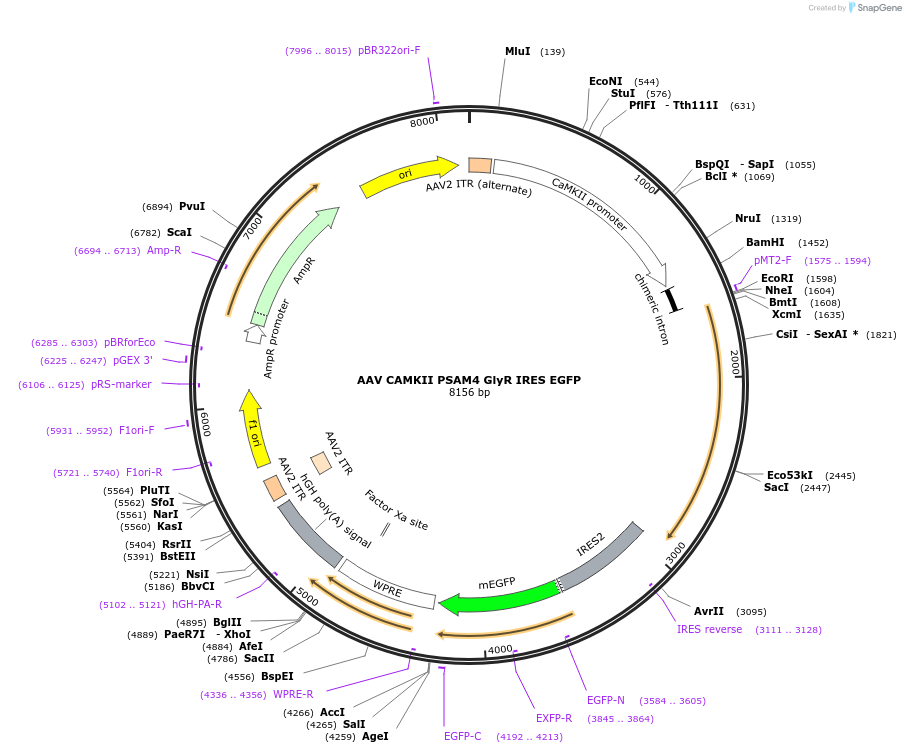

AAV CAMKII PSAM4 GlyR IRES EGFP
(Plasmid #119744)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 119744 Standard format: Plasmid sent in bacteria as agar stab 1 $75
AAV5 119744-AAV5 Limited Stock Available, 2 units left
Virus (100 µL at titer ≥ 7×10¹² vg/mL) and Plasmid.
$380

This material is available to academics and nonprofits only.

Backbone

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    PSAM4 GlyR IRES eGFP
  • Species
    H. sapiens (human), Synthetic
  • Mutation
    L131G, Q139L, Y217F
  • Entrez Gene
    CHRNA7 (a.k.a. CHRNA7-2, NACHRA7)
  • Promoter CamKII

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site AgeI (not destroyed)
  • 5′ sequencing primer pMT2-F
  • 3′ sequencing primer IRES reverse
  • (Common Sequencing Primers)

Resource Information

Information for AAV5 (Catalog # 119744-AAV5) ( Back to top )

Purpose

Ready-to-use AAV5 particles produced from AAV CAMKII PSAM4 GlyR IRES EGFP (#119744). In addition to the viral particles, you will also receive purified AAV CAMKII PSAM4 GlyR IRES EGFP plasmid DNA.

CamKII-driven expression of PSAM4 GlyR IRES EGFP for neuronal silencing. These AAV preparations are suitable purity for injection into animals.

Delivery

  • Volume 100 µL
  • Titer ≥ 7×10¹² vg/mL
  • Pricing $350 USD for preparation of 100 µL virus + $30 USD for plasmid.
  • Storage Store at -80℃. Thaw just before use and keep on ice.
  • Shipment Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

  • Packaging Plasmids encode adenoviral helper sequences and AAV rep gene, AAV5 cap gene
  • Buffer PBS + 0.001% Pluronic F-68 + 200 mM NaCl
  • Serotype AAV5
  • Purification Iodixanol gradient ultracentrifugation
  • Reporter Gene EGFP

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Resource Information

Viral Quality Control

Quality Control:
  • Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
  • Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    AAV CAMKII PSAM4 GlyR IRES EGFP was a gift from Scott Sternson (Addgene plasmid # 119744 ; http://n2t.net/addgene:119744 ; RRID:Addgene_119744)

    For viral preps, please replace (Addgene plasmid # 119744) in the above sentence with: (Addgene viral prep # 119744-AAV5)

  • For your References section:

    Ultrapotent chemogenetics for research and potential clinical applications. Magnus CJ, Lee PH, Bonaventura J, Zemla R, Gomez JL, Ramirez MH, Hu X, Galvan A, Basu J, Michaelides M, Sternson SM. Science. 2019 Mar 14. pii: science.aav5282. doi: 10.1126/science.aav5282. 10.1126/science.aav5282 PubMed 30872534
