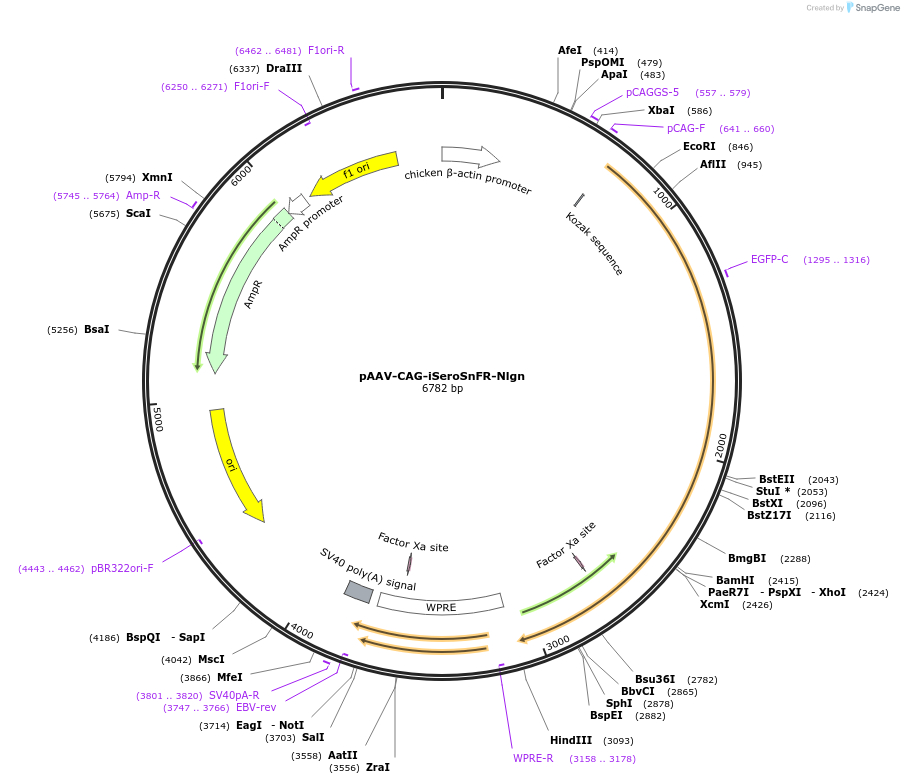

pAAV-CAG-iSeroSnFR-Nlgn
(Plasmid #128485)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 128485 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pAAV
  • Backbone size w/o insert (bp) 5000
  • Total vector size (bp) 7410
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    iSeroSnFR
  • Insert Size (bp)
    2410
  • Promoter CAG
  • Tags / Fusion Proteins
    • Ig-kappa leader (N terminal on insert)
    • Full-length neuroligin (C terminal on insert)
    • cpsfGFP

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer pCAG-N - cctccttgtataaatcctgg
  • 3′ sequencing primer pCAG-C - ccaggatttatacaaggagg
  • (Common Sequencing Primers)

Resource Information

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-CAG-iSeroSnFR-Nlgn was a gift from Lin Tian (Addgene plasmid # 128485 ; http://n2t.net/addgene:128485 ; RRID:Addgene_128485)
  • For your References section:

    Directed Evolution of a Selective and Sensitive Serotonin Sensor via Machine Learning. Unger EK, Keller JP, Altermatt M, Liang R, Matsui A, Dong C, Hon OJ, Yao Z, Sun J, Banala S, Flanigan ME, Jaffe DA, Hartanto S, Carlen J, Mizuno GO, Borden PM, Shivange AV, Cameron LP, Sinning S, Underhill SM, Olson DE, Amara SG, Temple Lang D, Rudnick G, Marvin JS, Lavis LD, Lester HA, Alvarez VA, Fisher AJ, Prescher JA, Kash TL, Yarov-Yarovoy V, Gradinaru V, Looger LL, Tian L. Cell. 2020 Dec 12. pii: S0092-8674(20)31612-3. doi: 10.1016/j.cell.2020.11.040. 10.1016/j.cell.2020.11.040 PubMed 33333022
