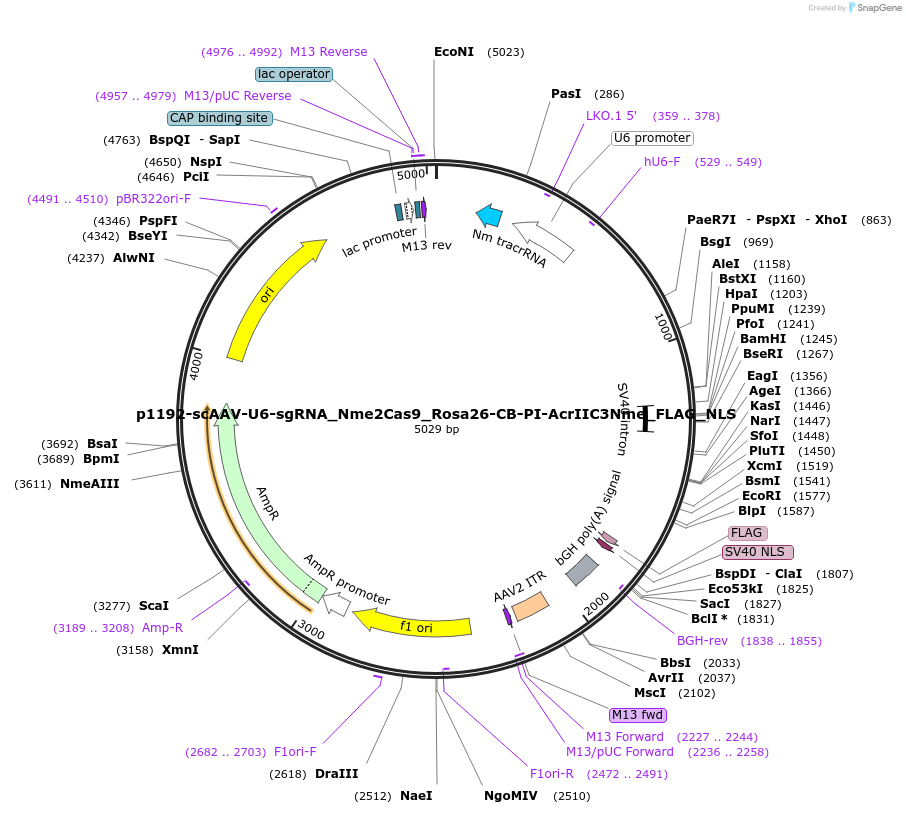

p1192-scAAV-U6-sgRNA_Nme2Cas9_Rosa26-CB-PI-AcrIIC3Nme_FLAG_NLS
(Plasmid #129530)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 129530 Standard format: Plasmid sent in bacteria as agar stab 1 $75

This material is available to academics and nonprofits only.

Backbone

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert 1

  • Gene/Insert name
    codon-optimized AcrIIC3Nme
  • Insert Size (bp)
    348
  • Promoter cytomegalovirus-enhancer chicken β-actin promoter with SV40-derived mini-intron
  • Tag / Fusion Protein
    • FLAG/NLS (C terminal on insert)

Cloning Information for Gene/Insert 1

  • Cloning method Restriction Enzyme
  • 5′ cloning site AgeI (not destroyed)
  • 3′ cloning site SacI (not destroyed)
  • 5′ sequencing primer tacggtaaatggcccgcctg
  • 3′ sequencing primer TAGAAGGCACAGTCGAGG
  • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    sgRNA_Rosa26
  • Insert Size (bp)
    145
  • Promoter U6

Cloning Information for Gene/Insert 2

  • Cloning method Restriction Enzyme
  • 5′ cloning site MluI (not destroyed)
  • 3′ cloning site MluI (not destroyed)
  • 5′ sequencing primer CTCTAGGAAGATCAATTCGGTA
  • 3′ sequencing primer GAGGGCCTATTTCCCATGATT
  • (Common Sequencing Primers)

Resource Information

  • Terms and Licenses
  • Industry Terms
    • Not Available to Industry
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    p1192-scAAV-U6-sgRNA_Nme2Cas9_Rosa26-CB-PI-AcrIIC3Nme_FLAG_NLS was a gift from Erik Sontheimer (Addgene plasmid # 129530 ; http://n2t.net/addgene:129530 ; RRID:Addgene_129530)
  • For your References section:

    Tissue-restricted Genome Editing in vivo Specified by MicroRNA-repressible Anti-CRISPR Proteins. Lee J, Mou H, Ibraheim R, Liang SQ, Liu P, Xue W, Sontheimer EJ. RNA. 2019 Aug 22. pii: rna.071704.119. doi: 10.1261/rna.071704.119. 10.1261/rna.071704.119 PubMed 31439808
