pCAG-mGFP
(Plasmid #14757)

• Depositing Lab: Connie Cepko
• Depositing Organization: Harvard Medical School
  Located in United States of America
• Publication: Matsuda et al Proc Natl Acad Sci U S A. 2007 Jan 16;104(3):1027-32. doi: 10.1073/pnas.0610155104
• Citations: 57 Articles

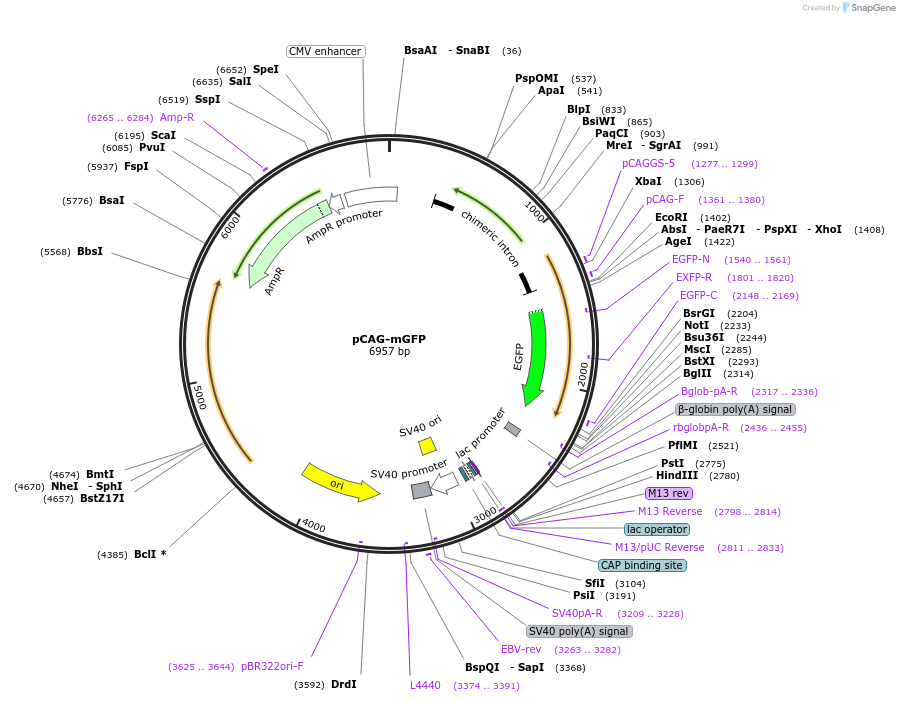

Backbone

• Vector backbone: pCAGEN
• Backbone size w/o insert (bp): 6122
• Total vector size (bp): 6953
• Vector type: Mammalian Expression

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: membrane bound form of EGFP
• Alt name: GFP
• Alt name: green fluorescent protein
• Insert Size (bp): 831
• Promoter: pCAG
• Tag / Fusion Protein:
  • Palmitoylation signal (N terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: EcoRI (not destroyed)
• 3′ cloning site: NotI (not destroyed)
• 5′ sequencing primer: pCAG-F
• 3′ sequencing primer: EGFP-N

Resource Information

• Addgene Notes:
  • Addgene Diagnostic Digest
• A portion of this plasmid was derived from a plasmid made by: mGFP (Okada et al. Exp. Neurol. 156, 394-406 (1999)) was obtained from Dr. S. McConnell (Stanford Univ.)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

mGFP is a membrane-bound form of GFP containing a palmitoylation sequence of GAP43 at its N-terminus.

The mGFP insert contains V163A and S175G compared to EGFP. These mutations are not known to affect plasmid function. The Cepko lab and several other Addgene users have used this plasmid successfully in experiments.

Addgene's NGS finds an IS4-like element (ISVsa5 family transposase) in the backbone that does not affect the overall plasmid function.

DNA (Catalog # 14757-D50)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 50 μg
• Concentration: 1 μg/μL
• Pricing: $495 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

DNA (Catalog # 14757-D100)

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

• Amount: 100 μg
• Concentration: 1 μg/μL
• Pricing: $585 USD
• Storage: 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.
