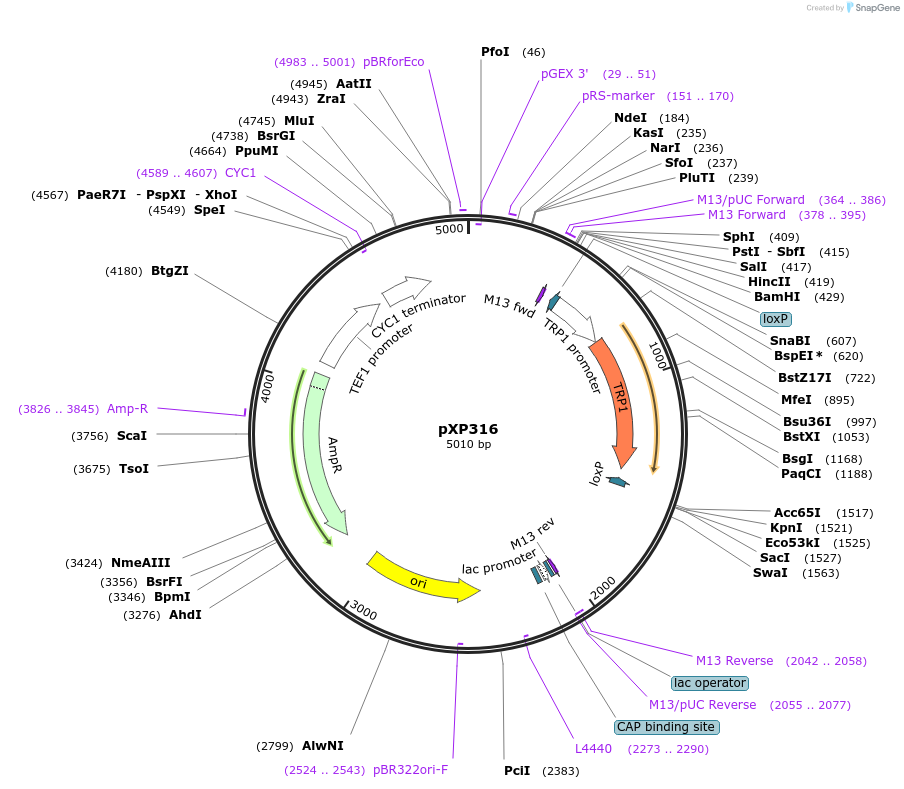

pXP316
(Plasmid
#26836)
-
Purpose(Empty Backbone)
-
Depositing Labs
-
Publication
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 26836 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepUC18
- Backbone size (bp) 5010
-
Modifications to backboneN/A
-
Vector typeYeast Expression
-
Selectable markersTRP1
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameNone
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site SpeI (not destroyed)
- 3′ cloning site XhoI (not destroyed)
- 5′ sequencing primer N/A (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pXP316 was a gift from Nancy DaSilva & Suzanne Sandmeyer (Addgene plasmid # 26836 ; http://n2t.net/addgene:26836 ; RRID:Addgene_26836) -
For your References section:
A vector set for systematic metabolic engineering in Saccharomyces cerevisiae. Fang F, Salmon K, Shen MW, Aeling KA, Ito E, Irwin B, Tran UP, Hatfield GW, Da Silva NA, Sandmeyer S. Yeast. 2010 Sep 10. ():. 10.1002/yea.1824 PubMed 20936606
