pTF273 (pFA6a-PSc-6xGly-12xHis-HphMX)
(Plasmid #44075)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 44075 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pFA6a-6xGLY-3xFLAG-hphMX4 (Addgene plasmid # 20755)
  • Backbone manufacturer
    Mark Hochstrasser lab (Yale Univeristy, New Haven, CT) (PMID: 19243080)
  • Backbone size (bp) 4477
  • Modifications to backbone
    6xGly/3xFlag replaced with PSc/6xGly/12xHis
  • Vector type
    PCR-based yeast C-terminal tagging
  • Selectable markers
    Hygromycin
  • Tags / Fusion Proteins
    • PreScission protease site (C terminal on backbone)
    • 6xGly linker (C terminal on backbone)
    • 12xHis tag (C terminal on backbone)
    • ADH1 transcription terminator (C terminal on backbone)
    • HphMX casette (C terminal on backbone)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Cloning Information

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Backbone pFA6a-6xGLY-3xFLAG-hphMX4 from Mark Hochstrasser lab (Yale Univeristy, New Haven, CT) via Addgene (Plasmid no. 20755)
  • Terms and Licenses

Depositor Comments

The depositing lab has constructed and deposited here 36 plasmids that can be used to generate linear PCR products to fuse to the 3' end of an ORF in the yeast genome and add (TEV or PreScission protease site) - 6X Gly linker - (12X His, 2X Strep, 3X FLAG, Protein A, or V5) - ADH1 transcription terminator - (KanMX, HphMX, or His3MX).

Six plasmids (Addgene plasmids 44062, 44068, 44074, 44080, 44086, and 44092) have no epitope/purification tag and so can be used to add an alternate tag by standard cloning into unique XhoI-KpnI-XbaI sites, if desired.

The other 30 plasmids are all of the possible combinations of the protease site - tag - marker options listed above. After fusion, the modified protein can then be followed with the epitope or purified using the tag and released from the matrix with the protease site.

The constructs were designed with one of two different protease sites to allow a complex with two different tags to be purified in two successive steps, using each protease to release the complex from each purification matrix.

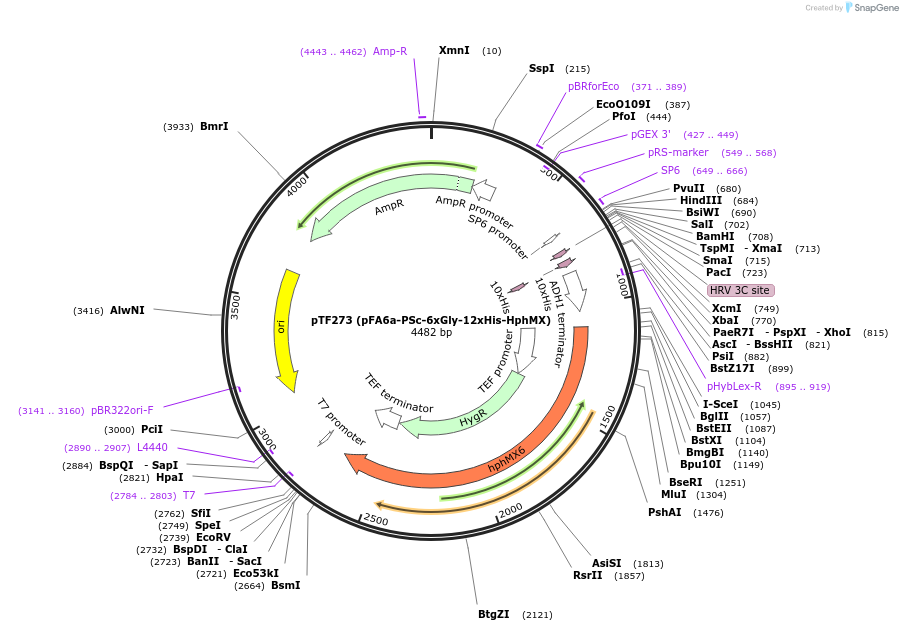

The schematic diagram (see attached above) represents the format of the constructs and shows the proper scheme for producing the desired PCR products (see also below). If only epitope tagging is needed, the upstream primer can be adjusted to skip the protease site (see example below).

Construction:

DS5421 (pFA6a-6xGLY-3XFLAG-HIS3MX6 (Addgene Plasmid #20753), DS5422 (pFA6a-6xGLY-3XFLAG-KanMX) (Addgene Plasmid #20754), or DS5423 (pFA6a-6xGLY-3XFLAG-HphMX) (Addgene Plasmid #20755) (corresponding to each selection marker) was digested with AscI and PacI to release 3XFlag and replace it with TEV or PreScision sites followed by 6xGly and an XhoI-KpnI-XbaI linker.

Affinity tags were constructed by PCR or by annealing oligos to fit into the XhoI-XbaI gap. This includes 12xHis, 2xStrep II, 3xFLAG, PrtA (2 repeats as found in pBS1479), and V5. Each tag was inserted into each base vector, making 30 templates with all combinations of protease site, tag, and selectable marker.

PCR amplification:

These two primers (along with 50 nt of homology to the targets at the 5' ends) will amplify the desired product from any of the constructs (the reading frame for P1 is important – alternating codons bracketed).

P1 5’-(homology)...[CGA]CGG[ATC]CCC[GGG]TTA[ATT]AAC-3’

P2 5’-(homology)...GATATCATCGATGAATTCGAGCTCGTTT-3’

If only epitope tagging is needed, the upstream primer can be adjusted to skip the protease site. As an example, for the V5-tag-containing constructs, usage of the following primer (5’-(homology)... GGTGGAGGCTCTAGAGGTAAGCCAATTCCA-3’) in place of P1 will omit the protease cleavage site and add only 3xGly and V5 (GGGSR-V5-Stop).

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTF273 (pFA6a-PSc-6xGly-12xHis-HphMX) was a gift from Tim Formosa (Addgene plasmid # 44075 ; http://n2t.net/addgene:44075 ; RRID:Addgene_44075)
