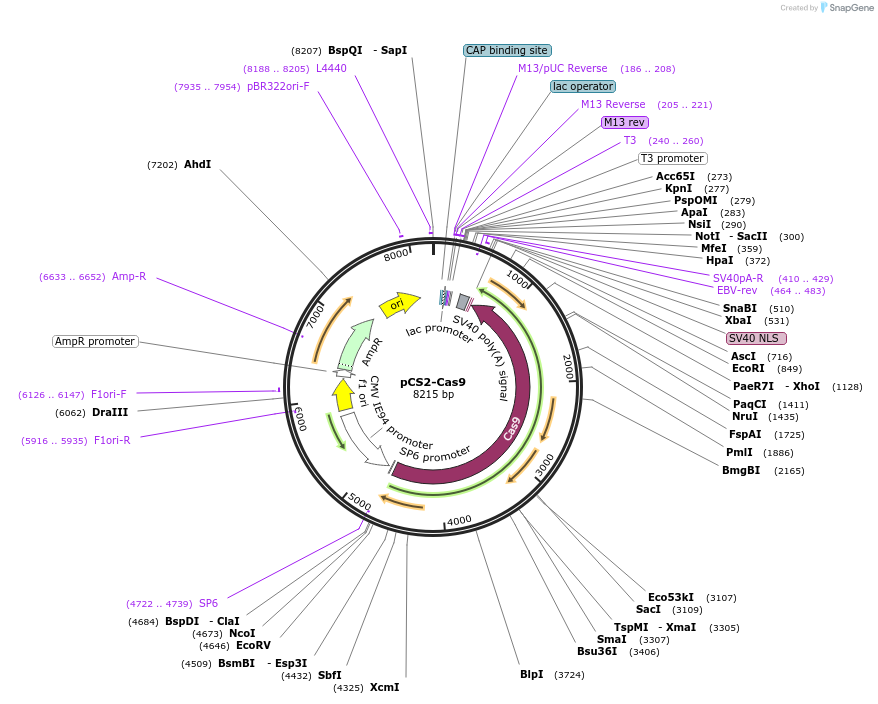

pCS2-Cas9
(Plasmid #47322)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 47322 Standard format: Plasmid sent in bacteria as agar stab 1 $85

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pCS2
  • Backbone size w/o insert (bp) 4095
  • Vector type
    Mammalian Expression, CRISPR ; xenopus and zebrafish expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Cas9
  • Insert Size (bp)
    4100
  • Promoter SP6

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site ClaI (not destroyed)
  • 3′ cloning site XbaI (not destroyed)
  • 5′ sequencing primer SP6
  • 3′ sequencing primer M13R
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Please see the Schier lab website http://labs.mcb.harvard.edu/schier/ for detailed protocols about target site selection, sgRNA production, stop codon cassette design, Cas9 protein purification, injection and downstream analysis.

This plasmid was used to prepare and inject Cas9 mRNA into zebrafish zygotes.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCS2-Cas9 was a gift from Alex Schier (Addgene plasmid # 47322 ; http://n2t.net/addgene:47322 ; RRID:Addgene_47322)
  • For your References section:

    Efficient mutagenesis by Cas9 protein-mediated oligonucleotide insertion and large-scale assessment of single-guide RNAs. Gagnon JA, Valen E, Thyme SB, Huang P, Ahkmetova L, Pauli A, Montague TG, Zimmerman S, Richter C, Schier AF. PLoS One. 2014 May 29;9(5):e98186. doi: 10.1371/journal.pone.0098186. eCollection 2014. PONE-D-14-14210 [pii] PubMed 24873830
