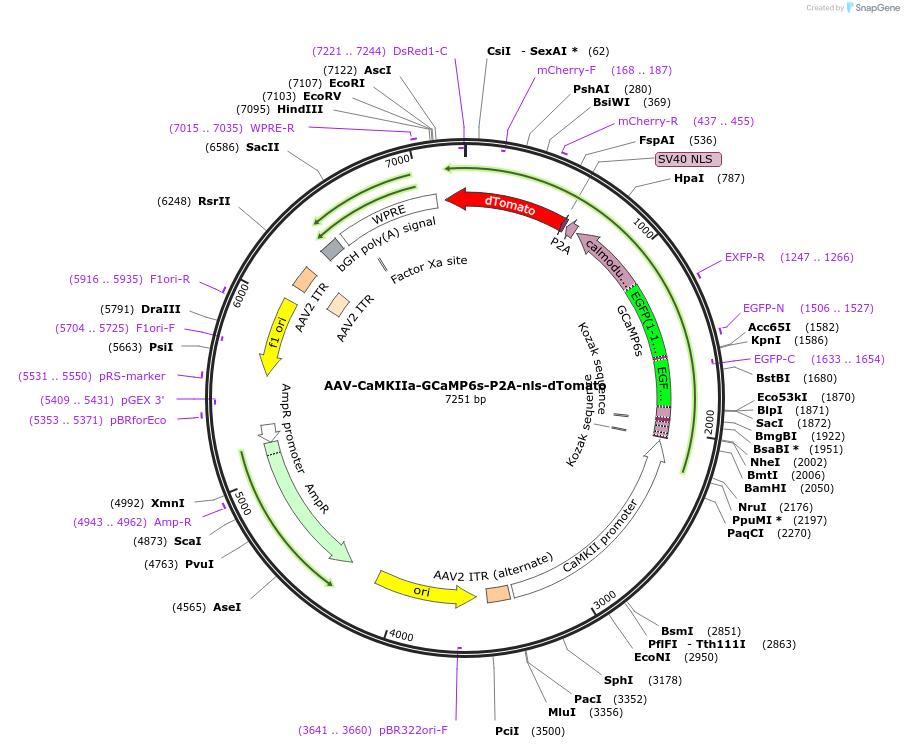

AAV-CaMKIIa-GCaMP6s-P2A-nls-dTomato
(Plasmid #51086)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 51086 Standard format: Plasmid sent in bacteria as agar stab 1 $65

This material is available to academics and nonprofits only.

Backbone

  • Vector backbone
    pAAV-CaMKIIa-WPRE-BGHpA
  • Backbone manufacturer
    custom
  • Backbone size w/o insert (bp) 5095
  • Total vector size (bp) 7255
  • Modifications to backbone
    Altered cloning sites and replaced HGHpA with smaller BGHpA
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Stbl3
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    GCaMP6s
  • Alt name
    G6s
  • Alt name
    GCaMP6 slow
  • Species
    Synthetic
  • Insert Size (bp)
    2160
  • Promoter CaMKIIa 1.3 kb
  • Tag / Fusion Protein
    • P2A-nls-dTomato (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site AscI (not destroyed)
  • 5′ sequencing primer ttctccgtttgcactcaggagc
  • 3′ sequencing primer CCATACGGGAAGCAATAGCATG
  • (Common Sequencing Primers)

Resource Information

Depositor Comments

The addition of the P2A-nls-dTomato allows for easy identification of GCaMP6 expressing cells exhibiting nuclear red fluorescence that does not significantly overlap with the cytosolic GCaMP signal. The GCaMP and fluorophore are physically uncoupled.

Permissions were obtained from Douglas Kim and the Clontech licensing office for depositing this new plasmid.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    AAV-CaMKIIa-GCaMP6s-P2A-nls-dTomato was a gift from Jonathan Ting (Addgene plasmid # 51086 ; http://n2t.net/addgene:51086 ; RRID:Addgene_51086)
