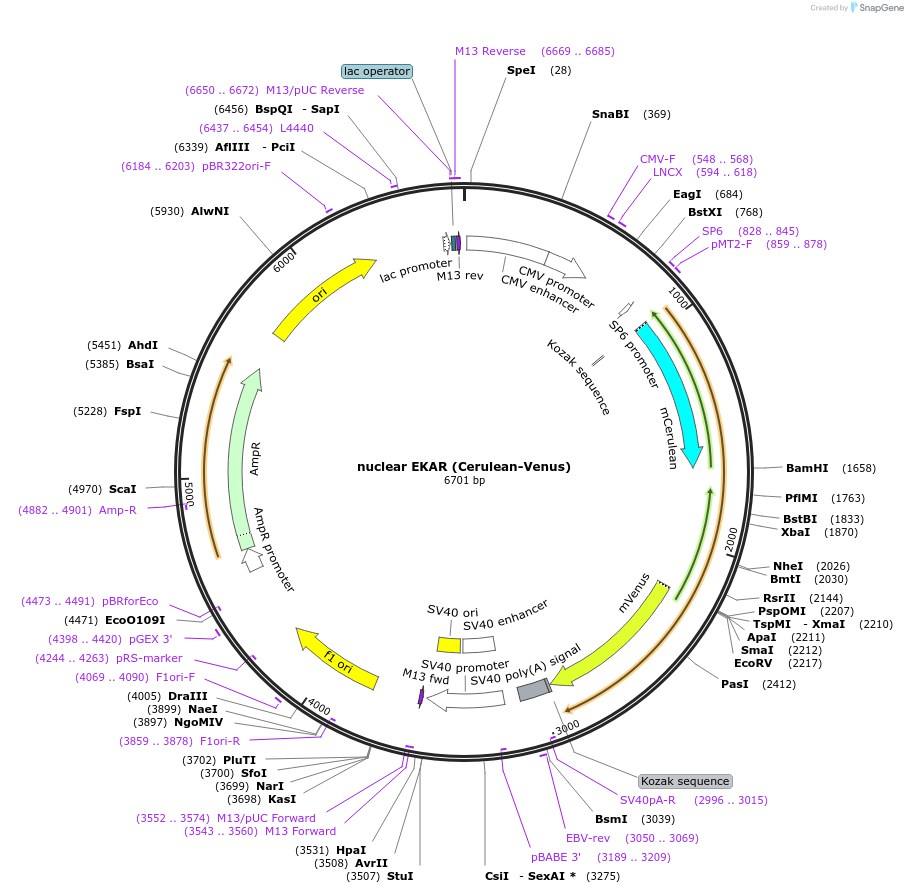

nuclear EKAR (Cerulean-Venus)
(Plasmid #18681)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 18681 Standard format: Plasmid sent in bacteria as agar stab 1 $94
Add to Cart
DNA 18681-D50 50 μg of DNA in Tris buffer $495
Add to Cart
DNA 18681-D100 100 μg of DNA in Tris buffer $585
Add to Cart

Backbone

  • Vector backbone
    pRK5
  • Backbone size w/o insert (bp) 4500
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ERK Activity Reporter
  • Alt name
    EKAR
  • Insert Size (bp)
    550
  • Tags / Fusion Proteins
    • monomeric Cerulean (N terminal on insert)
    • monomeric Venus (C terminal on insert)

Cloning Information

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    David Yue (Glycine linker) David Litchfield (Pin1) Deborah Morrison (Cdc25C)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Trademarks:

  • Zeocin® is an InvivoGen trademark.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 50 μg
  • Concentration 1 μg/μL
  • Pricing $495 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

Purpose

Ready-to-use, high-purity DNA prep. DNA aliquots are suitable for use in mammalian cell transfections and other molecular biology applications.

Delivery

  • Amount 100 μg
  • Concentration 1 μg/μL
  • Pricing $585 USD
  • Storage 4 ℃ (short-term) or -20 ℃ (long-term)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry

Quality Control

Every DNA prep is verified by next-generation sequencing, confirming plasmid identity, sequence integrity, and absence of DNA contaminants. Concentration is confirmed to be within ±2.5% of the stated concentration.

Our production process has been validated to consistently yield endotoxin levels below 1.0 EU/μg. Individual lots are not tested for endotoxin.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    nuclear EKAR (Cerulean-Venus) was a gift from Karel Svoboda (Addgene plasmid # 18681 ; http://n2t.net/addgene:18681 ; RRID:Addgene_18681)

  • For your References section:

    A genetically encoded fluorescent sensor of ERK activity. Harvey CD, Ehrhardt AG, Cellurale C, Zhong H, Yasuda R, Davis RJ, Svoboda K.. PNAS 2008 Dec 9;105(49):19264-9 10.1073/pnas.0804598105 PubMed 19033456
