Chemogenetic receptors are powerful tools that can be used to control and investigate cell signaling. While used in a variety of cell types, chemogenetic receptors are widely used in neuroscience. When introduced to the brain, these receptors can be used to investigate the relationship between behavior and particular neurons in the brain. Similar to optogenetics, wherein light is used to control neurons, chemogenetic receptors are activated by small molecules and in response, activate or inhibit neuronal firing. These receptors are typically unresponsive to native ligands and are engineered to respond to particular small molecules that are otherwise physiologically inert, and thus, enable specific control of neuronal activity with limited off-target effects. While popular in neuroscience, chemogenetic receptors have also been expressed in cardiac cells (Redfern et al. 1999), taste buds (Mueller et al. 2005, Zhao et al. 2003), pancreatic β-cells (Guettier et al. 2009), breast cancer cells (Yagi et al. 2011), and induced pluripotent stem (iPS) cells (Dell’Anno et al. 2014).

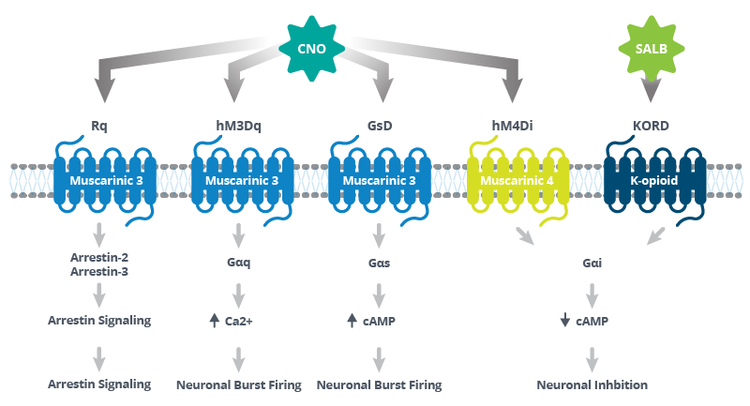

Schematic of various chemogenetic receptors and their signaling properties. Five types of chemogenetic receptors (Rq, hM3Dq, GsD, hM4Di, and KORD) have been genetically engineered from muscarinic or opioid receptors (as indicated by corresponding colors in the legend). Each receptor is specifically activated by its ligand (CNO, clozapine-n-oxide or SALB, salvinorin B) to signal to downstream effectors (Arrestin-2/Arrestin-3 or G-protein α subunits Gαq, Gαs, or Gαi). Activation of these effectors then leads to unique physiological outputs, as listed. Some receptors signal canonically through G-proteins (yellow box), while others have been engineered to signal through non-canonical pathways (green box).
G Protein-Coupled Receptors
To engineer chemogenetic receptors, researchers took advantage of G protein-coupled receptors (GPCRs), which are the largest group of membrane receptors in eukaryotes, and the largest class of signal-transducing molecules in the brain. GPCRs are cell surface receptors that can intercept a variety of extracellular signals, including light, peptides, sugars, and lipids, and relay signaling to an intracellular G protein. The intracellular G proteins that associate with GPCRs are comprised of three subunits: the alpha, beta, and gamma subunits. In the resting state, the heterotrimeric G protein is bound to the GPCR and, in particular, the alpha subunit is in its inactive, GDP-bound state. Once a signal is received by a GPCR, it undergoes a conformational shift that activates the G protein, causing the exchange of GDP with GTP. The trimeric G protein now dissociates into two parts: the active, GTP-bound alpha subunit and the beta-gamma dimer complex, both of which can then diffuse laterally (remaining bound to the plasma membrane) and signal to other membrane proteins.
Activated G proteins can signal to a variety of other proteins, and can activate production of second messengers. Each of the G protein subunits has different versions that have different binding partners, and thus, functions. There have been 5 beta-subunits, 11 gamma-subunits, and 20 alpha-subunits identified in mammals. Some of these G proteins activate their targets, while others can have inhibitory effects, and the combination of various G protein subunits to compose a G protein produces a diverse repertoire of G proteins and GPCR signaling within an organism. For example, the alpha subunit αs (Gαs) activates adenylate cyclase, causing production of the common second messenger cAMP. In neurons, cAMP elevation activates neuronal firing, while in smooth muscle, cAMP elevation causes muscle relaxation. Alternatively, the alpha subunit αi (Gαi) inhibits adenylate cyclase, and as a result can have an opposing effect (neuronal inhibition and smooth muscle contraction, respectively). Different alpha subunits can also have similar phenotypic outcomes. For example, the alpha subunit αq (Gαq) also causes smooth muscle contraction, but does so through the activation of phospholipase C. Thus, G proteins can activate a wide array of signaling pathways and lead to a variety of cellular responses.
As their name suggests, GPCRs couple to G proteins, and thus the activation of G protein is dependent on the activation of the GPCR. The activity of a GPCR can depend both on the ligand and on the downstream G protein that it couples to. GPCRs typically have a preference for one G protein subtype, but are capable of coupling to multiple subtypes. For example, the human muscarinic receptor M1 predominantly activates Gαq, but has also been shown to couple to Gαi and Gαs pathways. The human muscarinic receptor M1, however, has only been shown to couple with Gαq. In addition, different ligands can cause a GPCR to couple to different G proteins. Overall, the output of a GPCR depends on the ligand, the composition of the G protein to which the receptor couples, and the cell type in which the signaling occurs.
Chemogenetic Receptor Technologies
One major class of chemogenetic receptors is based on mutated GPCRs (Strader et al. 1991). These mutants were first created using wild-type β2-adrenergic receptor GPCRs that were engineered by site-directed mutagenesis to bind nonnatural ligands at high potency (e.g., at micromolar concentrations), while being unresponsive to native ligands (Small et al. 2001). Since nonnatural ligands exhibited off target effects and the engineered GPCRs exhibited high levels of constitutive activity (Sternson and Roth, 2014), the next phase of modified GPCRs were instead engineered to respond to specific, pharmacologically-inert, drug-like small molecules (Armbruster & Roth 2005, Alexander et al. 2009, Armbruster et al. 2007), a technology termed DREADD (designer receptor exclusively activated by designer drug). DREADDs, which were engineered from members of the human muscarinic receptor family, have the advantages of (1) nanomolecular potency for activation by the small molecule ligand clozapine-N-oxide (CNO), (2) relative insensitivity to the endogenous ligand acetylcholine, and (3) no detectable constitutive activity.
Table 1. Descriptions of DREADDs and their activity in neurons
|DREADD||Original receptor||Effector||Ligand||Effect||Outcome (in neurons)||Reference|
|hM3Dq||Human M3 muscarinic||Gαq||CNO||Increase Ca2+||Neuronal burst firing||Armbruster et al. 2007|
|hM4Di||Human M4 muscarinic||Gαi||CNO||Decrease cAMP β/γ-GIRK activation||Neuronal inhibition||Armbruster et al. 2007|
|GsD||Rat M3 muscarinic & turkey β1-adrenergic||Gαs||CNO||Increase cAMP||Neuronal burst firing||Guettier et al. 2009|
|Rq(R165L)||Human M3 muscarinic||Arrestin-2/-3||CNO||Increase Arrestin translocation||Arrestin signalling||Nakajima & Wess 2012|
|KORD||Human κ-opioid||Gαi||SALB||Decrease cAMP β/γ-GIRK activation||Neuronal inhibition||Vardy et al. 2015|
The M3 muscarinic receptor couples to Gαq, and the DREADD is thus termed hM3Dq to indicate its selectivity for Gαq-mediated signaling pathways, which can activate neuronal burst firing as a result of increasing intracellular calcium levels. DREADDs based on the M1 and M5 muscarinic receptors also couple to Gα (and are termed hM1Dq and hM5Dq, respectively), whereas M2- and M4-DREADDs couple to Gαi G proteins (and are termed hM2Di and hM4Di, respectively). Since these muscarinic receptors, and therefore these DREADDs (Table 1), couple to different G proteins, they exhibit different physiological effects including neuronal activation (burst firing), neuronal inhibition, or neuronal modulation. In addition to canonical G-protein activation, GPCRs also activate β-arrestin-mediated signaling pathways (Luttrell et al. 1999). This non-canonical
Table 2. Serotype-dependent spreading profiles of AAV-mediated GFP expression in the marmoset cerebral cortex
(Adapted from Watakabe et al. 2015)
|Serotype||Spread for injection site (mm) (mean1 ± SD)|
|1||1.2 ± 0.2|
|2||0.7 ± 0.2*|
|5||1.3 ± 0.3|
|8||No statistical difference observed between AAV1, 5, 8, 9|
|9||1.2 ± 0.4|
1Mean of GFP spread using CMV, CaMKII, and SynI promoter-driven GFP expression
*significantly different from AAV1/5/9 by ANOVA (p<0.001) and from AAV8 by Ryan’s method (p<0.05)
signaling pathway can be controlled by a mutated M3-muscarinic receptor, termed Rq(R165L), which selectively activates arrestin signaling without perturbing G-protein mediated pathways (Nakajima & Wess 2012). A DREADD technology based on the kappa-opioid receptor (KOR-DREADD), termed KORD, is an inhibitory receptor activated by the inactive drug-like metabolite salvinorin B (SALB) (Vardy et al. 2015). Because the KORD ligand is distinct from that of the other G-protein based DREADDs, multiplexed chemogenetic interrogation can be achieved by dual expression of the inhibitory KORD and the excitatory hM3Dq DREADD within a cell (Vardy et al. 2015). DREADDs commonly used in neuroscience are described in Table 1.

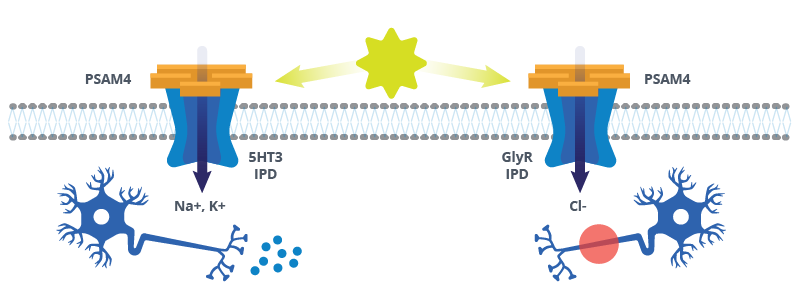

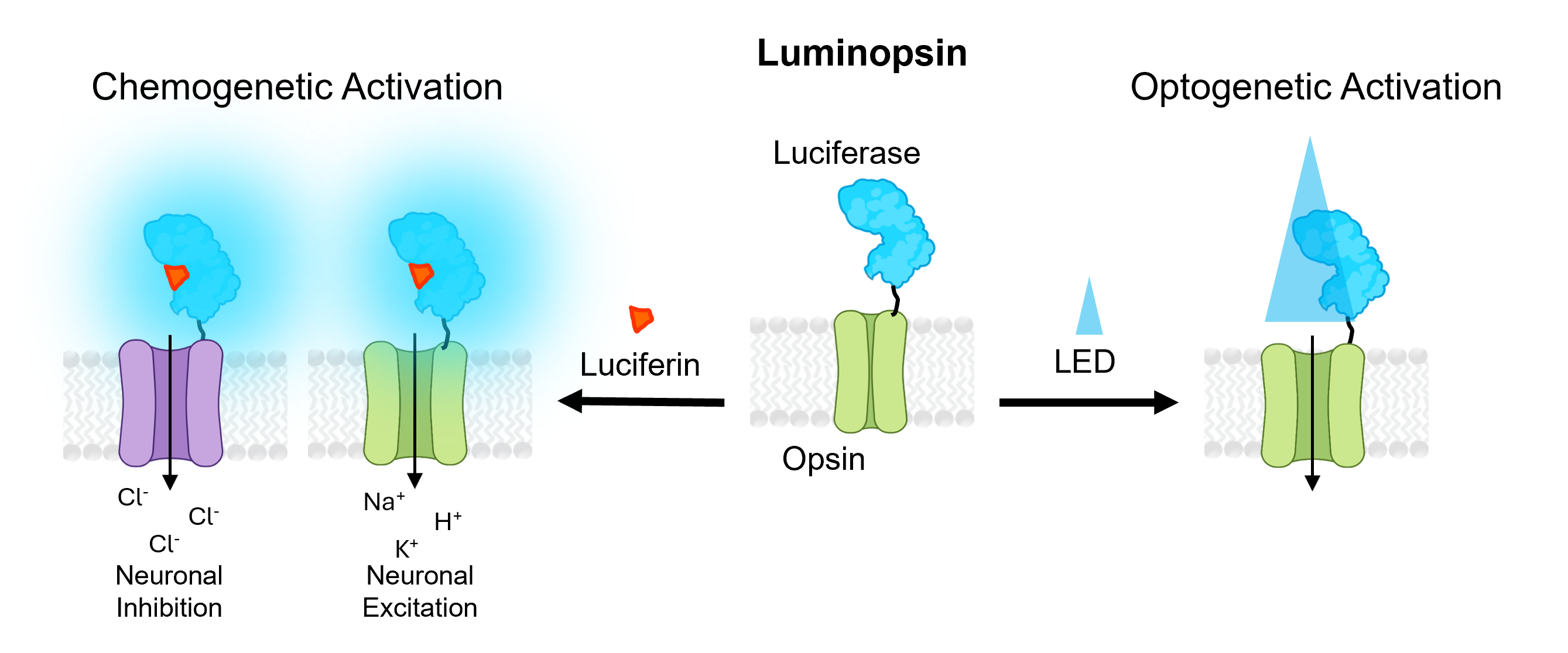

Another major class of chemogenetic receptors are also based on the KOR that have been engineered to be unresponsive to endogenous ligands, but could be activated by the KOR agonist spiradoline (Coward et al. 1998). This class of chemogenetic receptor, termed RASSL (receptor activated solely by synthetic ligand), is limited by the pharmacological activities of their ligands (e.g., spiradoline), and the fact that some RASSLs exhibit high levels of constitutive activity (Hsiao et al. 2008, 2011; Sweger et al. 2007). Ligand-gated ion channels (PSAMs and PSEMs) represent another class of tools that can be used to interrogate neuronal function, but have limited application outside of excitable cells (Magnus et al. 2014).

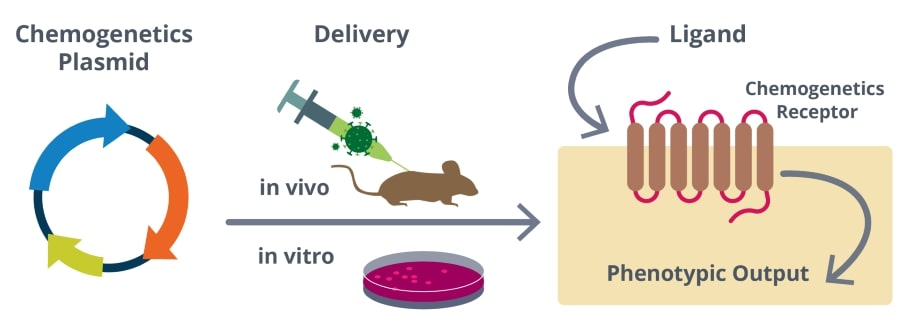

Controlling Chemogenetic Receptor Localization in Experiments
Chemogenetic receptors represent a powerful tool for potent and specific control of cell signaling. However, they must be targeted to specific cell types in order to establish the roles of these cells in particular phenotypes. Adeno-associated virus (AAV) is a widely-used tool for achieving in vivo expression of chemogenetic receptors, and AAV-mediated receptor expression can be controlled with AAV serotype and the identity of the transgene promoter.
AAV encoding specific chemogenetic receptors can be injected into specific brain regions, and can thus be used for in vivo neuronal expression in mice, rats, and primates. The serotype of the AAV used for in vivo transduction can impact and enhance the delivery of constructs to particular cell populations. In addition, when performing in vivo injections of AAV, serotype can affect the diffusion of the AAV from the injection site (Table 2). These data suggest that AAV2 may exhibit reduced spreading from the injection site relative to AAV1, 5, 8, and 9, which may be important for targeting DREADD delivery or expression. For tissue specificity of AAV serotypes, see our AAV guide.
Cell-specific expression of AAV-delivered constructs can be further controlled with cell-type specific promoters that drive receptor expression. Table 3 lists some common promoters found in chemogenetic receptor constructs and the cell types in which they drive expression.
Table 3. Description of promoters commonly used in chemogenetic plasmids
|hSyn1||Fragment of the human synapsin 1 gene promoter||Neurons|
|CaMKIIa||Ca2+/calmodulin-dependent protein kinase II promoter||Neurons|
|GFAP||Glial fibrillary acidic protein gene promoter||Glia|
|CD68||Human CD68 promoter||Microglia|
|EF1a||Strong mammalian expression from human elongation factor 1 alpha promoter||General expression|
|CAG||Strong hybrid mammalian promoter||General expression|
Finally, cell-specific expression of AAV-encoded receptors can be achieved by injecting vectors with loxP-type recombination site-flanked receptor sequences in mice with cell type-specific Cre recombinase expression (Urban and Roth 2015). These flip-excision (FLEx)-switch or double-inverted open reading frame (DIO) constructs essentially block receptor expression in the absence of Cre and can be used to achieve cell-specific expression across a range of cell types (Schnütgen et al. 2003, Atasoy et al. 2008, Kuhlman et al. 2008). For more information on FLEx vectors, see our FLEx Vectors blog post.
∗Note: Through a partnership with genOway, Addgene is able to distribute materials containing FLEx technology. Read the genOway press release for more information.
