Pro-Code Vector Kit
(Kit # 1000000177 )

Depositing Lab:   Brian Brown

The Pro-Code Vector Kit is a set of 120 lentiviral vector plasmids, each with a unique protein barcode (Pro-Code) and gRNA cloning site.These plasmids can be used for CRISPR screens and for tracking cell clones or populations.

This kit will be sent as bacterial glycerol stocks in 96-well plate format.

Add to Cart
$650 USD + shipping

Available to academics and nonprofits only.

Original Publication

Protein Barcodes Enable High-Dimensional Single-Cell CRISPR Screens Wroblewska A, Dhainaut M, Ben-Zvi B, Rose SA, Park ES, Amir ED, Bektesevic A, Baccarini A, Merad M, Rahman AH, Brown BD. Cell. 2018 Nov 1; doi: 10.1016/j.cell.2018.09.022. PubMed PMID: 30343902.

Description

This collection contains a set of 120 lentiviral vector plasmids. Each plasmid encodes a unique protein barcode (Pro-Code), which can be identified on cells by staining with a cocktail of just 10 antibodies. Each Pro-Code is comprised of a mutant version of the human NGFR gene (dNGFR) fused to a sequence encoding three different linear epitopes. The Pro-Code is expressed from the human EF1alpha promoter. The lentiviral vector also contains the U6 promoter and a unique cloning site for insertion of a CRISPR guide RNA. The Pro-Code vectors can be used to carry out pooled CRISPR screens in which 120 different CRISPR-carrying cell populations can be resolved by staining cells with a 10 antibody cocktail and performing single cell flow cytometry, mass cytometry, or by multiplex imaging. The Pro-Code vectors can also be used for tracking cell clones or cell populations.

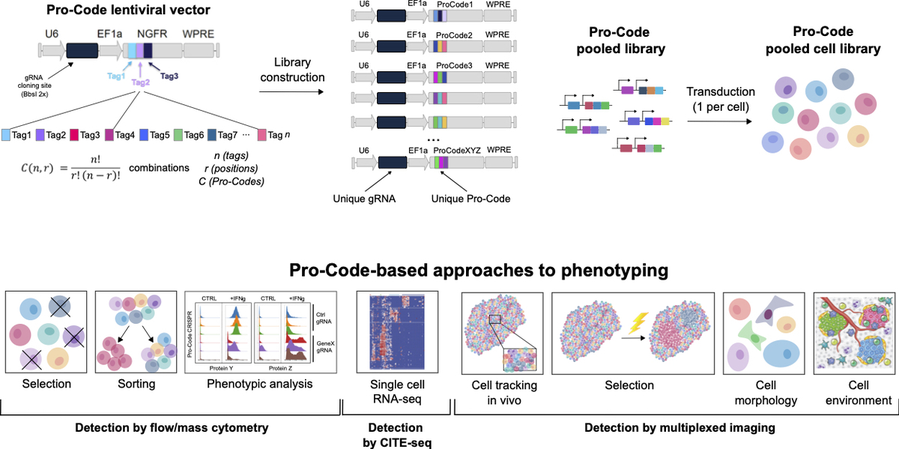

  • Pro-Code Vector Kit overview and experimental approaches.

Kit Documentation

Pro-Code_Kit_Methodology.pdf 548.5 KB

How to Cite this Kit

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which they were created, and include Addgene in the Materials and Methods of your future publications.

For your Materials and Methods section:

“The Pro-Code Vector Kit was a gift from Brian Brown (Addgene kit #1000000177).”

For your Reference section:

Protein Barcodes Enable High-Dimensional Single-Cell CRISPR Screens Wroblewska A, Dhainaut M, Ben-Zvi B, Rose SA, Park ES, Amir ED, Bektesevic A, Baccarini A, Merad M, Rahman AH, Brown BD. Cell. 2018 Nov 1; doi: 10.1016/j.cell.2018.09.022. PubMed PMID: 30343902.

Pro-Code Vector Kit - #1000000177

Resistance Color Key

Each circle corresponds to a specific antibiotic resistance in the kit plate map wells.

Inventory

Searchable and sortable table of all plasmids in kit. The Well column links to its kit plate map on the right, as well as lists the plasmid well location in its plate. The Plasmid column links to a plasmid's individual web page.

Kit Plate Map

96-well plate map for plasmid layout. Hovering over a well reveals the plasmid name, while clicking on a well opens the plasmid page.

Resistance Color Key

Ampicillin

Inventory

Well Plasmid Resistance
Plate 1 / A / 1 pLKO_HA.AU1.VSVg_NGFR
Ampicillin
Plate 1 / A / 2 pLKO_NWS.FLAG.VSVg_NGFR
Ampicillin
Plate 1 / A / 3 pLKO_HA.AU1.NWS_NGFR
Ampicillin
Plate 1 / A / 4 pLKO_HA.AU1.V5_NGFR
Ampicillin
Plate 1 / A / 5 pLKO_HA.AU1.FLAG_NGFR
Ampicillin
Plate 1 / A / 6 pLKO_NWS.AU1.V5_NGFR
Ampicillin
Plate 1 / A / 7 pLKO_NWS.AU1.FLAG_NGFR
Ampicillin
Plate 1 / A / 8 pLKO_NWS.AU1.VSVg_NGFR
Ampicillin
Plate 1 / A / 9 pLKO_V5.AU1.FLAG_NGFR
Ampicillin
Plate 1 / A / 10 pLKO_V5.AU1.VSVg_NGFR
Ampicillin
Plate 1 / A / 11 pLKO_AU1.FLAG.VSVg_NGFR
Ampicillin
Plate 1 / A / 12 pLKO_HA.NWS.VSVg_NGFR
Ampicillin
Plate 1 / B / 1 pLKO_HA.V5.VSVg_NGFR
Ampicillin
Plate 1 / B / 2 pLKO_HA.FLAG.VSVg_NGFR
Ampicillin
Plate 1 / B / 3 pLKO_NWS.V5.VSVg_NGFR
Ampicillin
Plate 1 / B / 4 pLKO_V5.FLAG.VSVg_NGFR
Ampicillin
Plate 1 / B / 5 pLKO_HA.NWS.V5_NGFR
Ampicillin
Plate 1 / B / 6 pLKO_HA.NWS.FLAG_NGFR
Ampicillin
Plate 1 / B / 7 pLKO_HA.V5.FLAG_NGFR
Ampicillin
Plate 1 / B / 8 pLKO_NWS.V5.FLAG_NGFR
Ampicillin
Plate 1 / B / 9 pLKO_FLAG.AU1.C_NGFR
Ampicillin
Plate 1 / B / 10 pLKO_HA.AU1.C_NGFR
Ampicillin
Plate 1 / B / 11 pLKO_NWS.AU1.C_NGFR
Ampicillin
Plate 1 / B / 12 pLKO_V5.AU1.C_NGFR
Ampicillin
Plate 1 / C / 1 pLKO_VSVg.AU1.C_NGFR
Ampicillin
Plate 1 / C / 2 pLKO_FLAG.HA.C_NGFR
Ampicillin
Plate 1 / C / 3 pLKO_FLAG.NWS.C_NGFR
Ampicillin
Plate 1 / C / 4 pLKO_FLAG.V5.C_NGFR
Ampicillin
Plate 1 / C / 5 pLKO_FLAG.VSVg.C_NGFR
Ampicillin
Plate 1 / C / 6 pLKO_HA.NWS.C_NGFR
Ampicillin
Plate 1 / C / 7 pLKO_HA.V5.C_NGFR
Ampicillin
Plate 1 / C / 8 pLKO_HA.VSVg.C_NGFR
Ampicillin
Plate 1 / C / 9 pLKO_NWS.V5.C_NGFR
Ampicillin
Plate 1 / C / 10 pLKO_NWS.VSVg.C_NGFR
Ampicillin
Plate 1 / C / 11 pLKO_V5.VSVg.C_NGFR
Ampicillin
Plate 1 / C / 12 pLKO_HSV.Ollas.S_NGFR
Ampicillin
Plate 1 / D / 1 pLKO_HSV.Ollas.C_NGFR
Ampicillin
Plate 1 / D / 2 pLKO_HSV.Ollas.V5_NGFR
Ampicillin
Plate 1 / D / 3 pLKO_HSV.Ollas.FLAG_NGFR
Ampicillin
Plate 1 / D / 4 pLKO_HSV.Ollas.NWS_NGFR
Ampicillin
Plate 1 / D / 5 pLKO_HSV.Ollas.HA_NGFR
Ampicillin
Plate 1 / D / 6 pLKO_HSV.AU1.Ollas_NGFR
Ampicillin
Plate 1 / D / 7 pLKO_HSV.Ollas.VSVg_NGFR
Ampicillin
Plate 1 / D / 8 pLKO_HSV.S.C_NGFR
Ampicillin
Plate 1 / D / 9 pLKO_HSV.S.V5_NGFR
Ampicillin
Plate 1 / D / 10 pLKO_HSV.S.FLAG_NGFR
Ampicillin
Plate 1 / D / 11 pLKO_HSV.S.NWS_NGFR
Ampicillin
Plate 1 / D / 12 pLKO_HSV.S.HA_NGFR
Ampicillin
Plate 1 / E / 1 pLKO_HSV.S.AU1_NGFR
Ampicillin
Plate 1 / E / 2 pLKO_HSV.S.VSVg_NGFR
Ampicillin
Plate 1 / E / 3 pLKO_HSV.C.V5_NGFR
Ampicillin
Plate 1 / E / 4 pLKO_HSV.C.FLAG_NGFR
Ampicillin
Plate 1 / E / 5 pLKO_HSV.C.NWS_NGFR
Ampicillin
Plate 1 / E / 6 pLKO_HSV.C.HA_NGFR
Ampicillin
Plate 1 / E / 7 pLKO_HSV.AU1.C_NGFR
Ampicillin
Plate 1 / E / 8 pLKO_HSV.C.VSVg_NGFR
Ampicillin
Plate 1 / E / 9 pLKO_HSV.V5.FLAG_NGFR
Ampicillin
Plate 1 / E / 10 pLKO_HSV.V5.NWS_NGFR
Ampicillin
Plate 1 / E / 11 pLKO_HSV.V5.HA_NGFR
Ampicillin
Plate 1 / E / 12 pLKO_HSV.AU1.V5_NGFR
Ampicillin
Plate 1 / F / 1 pLKO_HSV.V5.VSVg_NGFR
Ampicillin
Plate 1 / F / 2 pLKO_HSV.FLAG.NWS_NGFR
Ampicillin
Plate 1 / F / 3 pLKO_HSV.FLAG.HA_NGFR
Ampicillin
Plate 1 / F / 4 pLKO_HSV.AU1.FLAG_NGFR
Ampicillin
Plate 1 / F / 5 pLKO_HSV.FLAG.VSVg_NGFR
Ampicillin
Plate 1 / F / 6 pLKO_HSV.NWS.HA_NGFR
Ampicillin
Plate 1 / F / 7 pLKO_HSV.AU1.NWS_NGFR
Ampicillin
Plate 1 / F / 8 pLKO_HSV.NWS.VSVg_NGFR
Ampicillin
Plate 1 / F / 9 pLKO_HSV.AU1.HA_NGFR
Ampicillin
Plate 1 / F / 10 pLKO_HSV.HA.VSVg_NGFR
Ampicillin
Plate 1 / F / 11 pLKO_HSV.AU1.VSVg_NGFR
Ampicillin
Plate 1 / F / 12 pLKO_Tag.C.S.Ollas_NGFR
Ampicillin
Plate 1 / G / 1 pLKO_Tag.V5.S.Ollas_NGFR
Ampicillin
Plate 1 / G / 2 pLKO_Tag.FLAG.S.Ollas_NGFR
Ampicillin
Plate 1 / G / 3 pLKO_Tag.NWS.S.Ollas_NGFR
Ampicillin
Plate 1 / G / 4 pLKO_Tag.HA.S.Ollas_NGFR
Ampicillin
Plate 1 / G / 5 pLKO_Tag.AU1.S.Ollas_NGFR
Ampicillin
Plate 1 / G / 6 pLKO_Tag.VSVg.S.Ollas_NGFR
Ampicillin
Plate 1 / G / 7 pLKO_Ollas.C.V5_NGFR
Ampicillin
Plate 1 / G / 8 pLKO_Ollas.C.FLAG_NGFR
Ampicillin
Plate 1 / G / 9 pLKO_Ollas.C.NWS_NGFR
Ampicillin
Plate 1 / G / 10 pLKO_Ollas.C.HA_NGFR
Ampicillin
Plate 1 / G / 11 pLKO_Ollas.AU1.C_NGFR
Ampicillin
Plate 1 / G / 12 pLKO_Ollas.C.VSVg_NGFR
Ampicillin
Plate 1 / H / 1 pLKO_Ollas.V5.FLAG_NGFR
Ampicillin
Plate 1 / H / 2 pLKO_Ollas.V5.NWS_NGFR
Ampicillin
Plate 1 / H / 3 pLKO_Ollas.V5.HA_NGFR
Ampicillin
Plate 1 / H / 4 pLKO_Ollas.AU1.V5_NGFR
Ampicillin
Plate 1 / H / 5 pLKO_Ollas.V5.VSVg_NGFR
Ampicillin
Plate 1 / H / 6 pLKO_Ollas.FLAG.NWS_NGFR
Ampicillin
Plate 1 / H / 7 pLKO_Ollas.FLAG.HA_NGFR
Ampicillin
Plate 1 / H / 8 pLKO_AU1.Ollas.FLAG_NGFR
Ampicillin
Plate 1 / H / 9 pLKO_FLAG.Ollas.VSVg_NGFR
Ampicillin
Plate 1 / H / 10 pLKO_NWS.Ollas.HA_NGFR
Ampicillin
Plate 1 / H / 11 pLKO_AU1.Ollas.NWS_NGFR
Ampicillin
Plate 1 / H / 12 pLKO_NWS.Ollas.VSVg_NGFR
Ampicillin
Plate 2 / A / 1 pLKO_AU1.Ollas.HA_NGFR
Ampicillin
Plate 2 / A / 2 pLKO_HA.Ollas.VSVg_NGFR
Ampicillin
Plate 2 / A / 3 pLKO_AU1.Ollas.VSVg_NGFR
Ampicillin
Plate 2 / A / 4 pLKO_S.C.V5_NGFR
Ampicillin
Plate 2 / A / 5 pLKO_S.C.FLAG_NGFR
Ampicillin
Plate 2 / A / 6 pLKO_S.C.NWS_NGFR
Ampicillin
Plate 2 / A / 7 pLKO_S.C.HA_NGFR
Ampicillin
Plate 2 / A / 8 pLKO_S.C.AU1_NGFR
Ampicillin
Plate 2 / A / 9 pLKO_S.C.VSVg_NGFR
Ampicillin
Plate 2 / A / 10 pLKO_S.V5.FLAG_NGFR
Ampicillin
Plate 2 / A / 11 pLKO_S.V5.NWS_NGFR
Ampicillin
Plate 2 / A / 12 pLKO_S.V5.HA_NGFR
Ampicillin
Plate 2 / B / 1 pLKO_S.V5.AU1_NGFR
Ampicillin
Plate 2 / B / 2 pLKO_S.V5.VSVg_NGFR
Ampicillin
Plate 2 / B / 3 pLKO_S.FLAG.NWS_NGFR
Ampicillin
Plate 2 / B / 4 pLKO_S.FLAG.HA_NGFR
Ampicillin
Plate 2 / B / 5 pLKO_S.FLAG.AU1_NGFR
Ampicillin
Plate 2 / B / 6 pLKO_S.FLAG.VSVg_NGFR
Ampicillin
Plate 2 / B / 7 pLKO_S.NWS.HA_NGFR
Ampicillin
Plate 2 / B / 8 pLKO_S.NWS.AU1_NGFR
Ampicillin
Plate 2 / B / 9 pLKO_S.NWS.VSVg_NGFR
Ampicillin
Plate 2 / B / 10 pLKO_S.HA.AU1_NGFR
Ampicillin
Plate 2 / B / 11 pLKO_S.HA.VSVg_NGFR
Ampicillin
Plate 2 / B / 12 pLKO_S.AU1.VSVg_NGFR
Ampicillin
Data calculated @ 2021-12-03
