Rinehart Lab Phosphoprotein Reagents

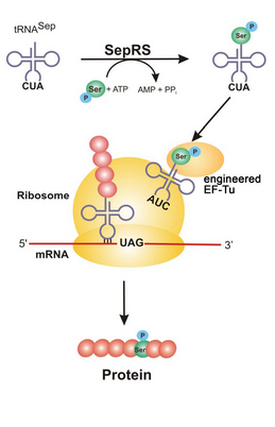

A schematic of the phosphoserine charging and translation of a new phosphorylated protein. Serine transfer RNA with anticodon CUA + phosphoserine + ATP catalyzed by SepRS results in AMP + PPi + the phosphoserine-charged tRNA. Engineered EF-Tu and the phosphoserine-charged tRNA with anticodon AUC come to the ribosome where they recognize UAG and transfer the phosphoserine to the growing polypeptide chain, resulting in an authentically phosphorylated protein.

Figure 1: SepRS adds a phosphoserine to tRNA^Sep with anticodon, CUA. Engineered EF-Tu binds the phosphoserine-charged tRNA (AUC) and is brought to the ribosome where it recognizes the UAG amber codon and incorporates phosphoserine into the growing polypeptide chain to generate the new phosphorylated protein.

Protein Phosphorylation

Protein phosphorylation is one of the most abundant forms of posttranslational modification in cells and research into its many roles in protein function and signaling networks continues to expand. The Rinehart and Söll labs at Yale University changed the way researchers can explore important questions surrounding serine phosphorylation by adding this phosphorylated amino acid to the genetic code of E. coli (Park et al., 2011). Follow up work from the Rinehart and Issacs labs at Yale have made improvements to this system by genomically recoding E.coli (Lajoie et al., 2013) and improving the orthogonal translation system to make phosphorylated proteins with one or more phosphorylation sites (Pirman et al., 2015).

Improved phosphoprotein production with rEcoli XpS and a new pSerOTS

The Rinehart lab developed a new strain of recoded E.coli, rEcoli XpS (Bacterial strain #192872), and an optimized phosphoserine orthogonal translation system, pSerOTS-C1* (V70) (Plasmid #188537). These reagents are described in detail in Mohler et al. (2023) and help deliver improved phosphoprotein yield, rEcoli growth characteristics, and an overall improved ease of use when expressing recombinant phosphoproteins. These attributes make rEcoli XpS (Bacterial Strain #192872) and pSerOTS-C1* (V70) (Plasmid #188537) a better choice in place of the popular SepOTSλ (Plasmid #68292).

An important technical note: pSerOTS-C1* (V70) is a ROP minus plasmid and is not compatible with other plasmids containing high copy ColE1/PUC-like origins. Therefore, when choosing plasmids to express the phosphoprotein of interest, a medium copy RSF1030 origins or a low copy p15a origins should be used. Find further details in Mohler et al. (2023) and find general tips on phosphoprotein expression in rEcoli XpS in the Methods for iSPI, rEcoli XPS, pSerOTS-C1* (V70) (DOCX, 551 KB) .

The synthetic human phosphoproteome

The Rinehart lab synthesized 110,139 unique DNA sequences corresponding to every previously observed instance of human serine phosphorylation (Rinehart Human Serine Phosphopeptide Library). The phosphorylation sites (“phosphosites”) consist of a central phosphoserine site flanked by 15 amino acids on either side occurring within the parent protein. Using the recoded strain of E. coli, C321.ΔA (Bacterial strain #68306), with the optimized phosphoserine orthogonal translation system, SepOTSλ (Plasmid #68292), they were able to demonstrate unambiguous site-specific incorporation of phosphoserine in >36,000 phosphosites by tandem mass spectrometry (Barber et al., 2018). This phosphosite library was generated in a single mixed pool by expressing and purifying the phosphosite library as GST-fusion peptides (“Mode #1” expression). The Mode #1 phosphosite library (Pooled Library #111704) is anticipated to be useful for laboratories performing phosphoproteomic experiments in need of reference spectra or phosphopeptide standards for quantitative assessments. The Mode #1 phosphosite library can be generated with either phosphoserine using SepOTSλ (Plasmid #68292) or serine using supD tRNA (SupD (Plasmid #68307)) at the central position.

Introducing Hi-P for screening phosphorylation-dependent protein-protein interactions

Figure is composed of two panels. Left panel shows a graphic representation of a phosphosite in a mode 1 library containing a choice of serine or phosphoserine at their central position, a GST tag in the N terminus, and a 6xHis tag in the C terminus. Right panel shows a graphic representation of a phosphosite in a mode 2 library containing a choice of serine or phosphoserine at their central position, and an N-terminal split mCherry domain attached with a linker. A phospho-binding domain linked to a C-terminal split mCherry domain is shown next to it. The shapes of the phosphosite and the phospho-binding domain are complementary, and a plus symbol represents the possibility of attachment.

Figure 2: Mode #1 and Mode #2 phosphosite library configuration for overexpression in E. coli.

The phosphosite DNA library can also be introduced into a second expression vector encoding a split mCherry fluorescent reporter, enabling the detection of phosphorylation-dependent protein-peptide interactions (“Mode #2” expression, Barber et al., 2018). The phosphosite library is fused to the N-terminal portion of split mCherry, while a phosphobinding domain is fused to the C-terminal mCherry fragment. Upon interaction between the phosphobinding domain and the phosphosite, mCherry fluorescence is restored, so interactions can be discovered by fluorescence-activated cell sorting (FACS). The Mode #2 phosphosite library contains four different phosphobinding domains: 14-3-3β, 14-3-3σ, the WW2 domain of NEDD4, and the WW2 domain of NEDD4-2 (Pooled Libraries #111705-8).

Screening kinases

The Mode #1 phosphosite library can also be synthesized using supD tRNA (SupD (Plasmid #68307)) to generate the phosphosites with serine instead of phosphoserine (i.e., a “phosphorylatable” phosphosite library). This serine phosphosite library can then be used to identify candidate human substrates of kinases of interest by mass spectrometry in a technique called serine-oriented library/kinase-library reactions (SERIOHL-KILR, Barber et al., 2018).

A schematic of a protein with phosphoserines at different sites and an N-terminal MBP and HRV 3C cleavage site and a C-terminal 6xHis tag. The library of ~110,000 human phosphoserine sites is divided into iSPI1 iSPI2, iSPI3 and so on for a total of 10 iSPI subpools.

Figure 3: The library of ~110,000 phosphosites is subdivided into 10 iSPI subpools of ~11,000 unique phosphosites.

Iterative Synthetically Phosphorylated Isomers (iSPI)

The iSPI resource described in Galloway et al. (2022) is adapted from the synthetic human phosphoproteome. It subdivides the 110,139 human phosphoserine site library (Pooled Library #188536) into 10 subpools of ~11,000 phosphosites (Pooled Libraries #188526; #188527; #188528; #188529; #188530; #188531; #188532; #188533; #188534; #188535). Importantly, phosphorylation positional isomers are allocated to different subpools, allowing precise knowledge of phosphorylated positions for testing phosphoproteomics methods, proteomics search algorithms, proteomics phosphosite localization algorithms, or any method confounded by phosphosite ambiguity.


Rinehart Lab Improved Phosphoprotein Synthesis Reagents

Type ID Item
Strain 192872 rEcoli XpS (MG1655-C321 mutS+, λ-, Δ(ybhB-bioAB)::zeoR, ΔprfA, ΔserB)
Plasmid 188537 pSerOTS-C1* (V70)
Pooled Library 188536 iSPI_pSer_Full_library
Pooled Library 188535 iSPI_pSer_Subpool#10
Pooled Library 188534 iSPI_pSer_Subpool#9
Pooled Library 188533 iSPI_pSer_Subpool#8
Pooled Library 188532 iSPI_pSer_Subpool#7
Pooled Library 188531 iSPI_pSer_Subpool#6
Pooled Library 188530 iSPI_pSer_Subpool#5
Pooled Library 188529 iSPI_pSer_Subpool#4
Pooled Library 188528 iSPI_pSer_Subpool#3
Pooled Library 188527 iSPI_pSer_Subpool#2
Pooled Library 188526 iSPI_pSer_Subpool#1
Plasmid 112031 pNAS1b split mCherry 14-3-3β ctrl
Plasmid 112030 pNAS1b split mCherry NEDD4 WW2 neg ctrl
Plasmid 112029 pNAS1b split mCherry NEDD4 WW2 pos ctrl
Plasmid 111883 pNAS1b split mCherry NEDD4-2 WW2
Plasmid 111882 pNAS1b split mCherry NEDD4 WW2
Plasmid 111881 pNAS1b split mCherry 14-3-3σ
Plasmid 111880 pNAS1b split mCherry 14-3-3β
Pooled Library 111708 Mode #2 Library (NEDD4-2 WW2 domain)
Pooled Library 111707 Mode #2 Library (NEDD4 WW2 domain)
Pooled Library 111706 Mode #2 Library (14-3-3σ)
Pooled Library 111705 Mode #2 Library (14-3-3β)
Pooled Library 111704 Mode #1 Library
Plasmid 69118 E17TAG GFP zeo resistance
Plasmid 68307 SupD
Strain 68306 C321.ΔA.Δserb.Amp
Plasmid 68305 Beta lactamase S68TAG
Plasmid 68302 MBP-MEK1 S222TAG
Plasmid 68301 MBP-MEK1 S218TAG
Plasmid 68300 MBP-MEK1
Plasmid 68299 GFP E17TAG/Q157TAG
Plasmid 68298 GFP S2TAG/E17TAG
Plasmid 68297 GFP Q157TAG
Plasmid 68296 GFP S2TAG
Plasmid 68295 GFP E17TAG
Plasmid 68294 SepOTSν
Plasmid 68292 SepOTSλ
Plasmid 68291 SepOTSκ
Plasmid 68290 SepOTSι
Plasmid 68289 SepOTSθ
Plasmid 68288 SepOTSη
Plasmid 68287 SepOTSζ
Plasmid 68286 SepOTSϵ
Plasmid 68285 SepOTSδ
Plasmid 68284 SepOTSγ
Plasmid 68283 SepOTSβ
Plasmid 53225 MBP-MEK1 S218TAG/S222TAG (aka. PCRT7 tetR pLtetO MBP-MEK1 XX Amp)
Strain 52055 EcAR7
Plasmid 52054 SepOTSµ (aka. B40 OTS)
Strain 34929 BL21ΔserB
Plasmid 34624 SepOTSα tRNA-Sep (aka. pCAT112TAG-SepT)
Plasmid 34623 SepOTSα SepRS/EF-Sep (aka. pKD-SepRS-EFSep)
